LCXND6060WHL101MMG

Fixed Inductors Overview

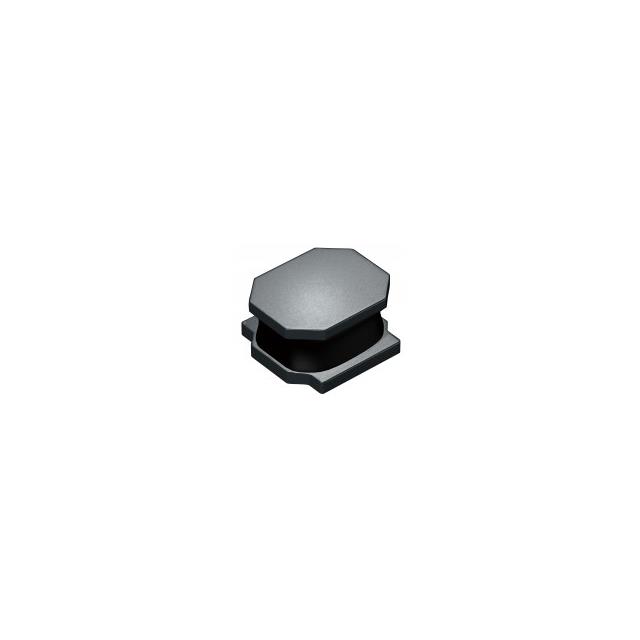

The LCXND6060WHL101MMG is a surface-mount power inductor from Taiyo Yuden, designed for automotive and industrial applications. It features a semi-shielded wirewound construction with a ferrite core, housed in a compact 6.0mm x 6.0mm footprint. The component provides an inductance of 100 µH with a tolerance of ±20%. It is qualified to the AEC-Q200 standard, ensuring reliability under harsh conditions. The operating temperature range spans from -40°C to +125°C, supporting robust performance in demanding electronic environments.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• Semi-shielded wirewound design reduces electromagnetic interference
• Ferrite core construction optimizes magnetic efficiency
• Compact 6060 metric package facilitates dense PCB layouts

Fixed Inductors Applications

• Automotive electronics systems
• Industrial equipment power supplies
• Telecommunications infrastructure
• DC-DC converter circuits

Fixed Inductors Procurement Notes

Verify the specific suffix MMG against official Taiyo Yuden documentation to confirm packaging and material specifications. Ensure that procurement channels source directly from authorized distributors or the manufacturer to guarantee authenticity. Cross-reference the full part number with current datasheets to validate compliance with RoHS directives and AEC-Q200 automotive standards before integration into production schedules.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high reliability in automotive or industrial sectors. The 100 µH value suits filtering and energy storage in moderate-power DC-DC converters. Consider the semi-shielded topology for applications needing reduced EMI without full shielding costs. Verify thermal management requirements against the -40°C to +125°C operating range to ensure stable performance under load.

Fixed Inductors Part Context

This part belongs to the LCXN series of power inductors by Taiyo Yuden, specifically engineered for automotive use. The series emphasizes durability and electromagnetic compatibility through its semi-shielded architecture. The 6060 package size balances component density with thermal dissipation capabilities, making it suitable for space-constrained designs in modern electronic systems.

Fixed Inductors Replacement Considerations

Consult official Taiyo Yuden substitution guides for verified alternatives. Generic equivalents may not meet AEC-Q200 automotive qualification requirements. Validate electrical parameters and physical dimensions before replacing to maintain circuit integrity and compliance with industry standards.
