LD411460

Diode Arrays Overview

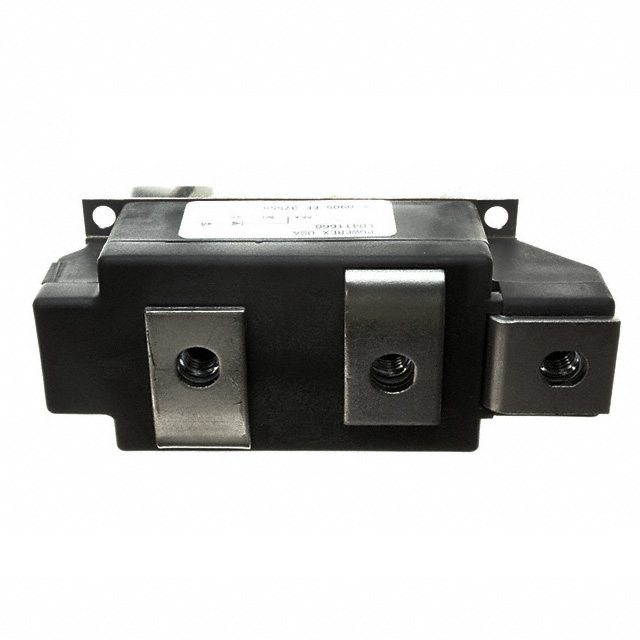

The LD411460 is a dual diode module from Powerex Inc., part of the POW-R-BLOK series. It features a maximum DC reverse voltage (Vr) of 1400 V and an average rectified current (Io) of 600 A per diode. The forward voltage (Vf) is specified for standard operating conditions. The component utilizes compression bonded elements and an aluminum nitride isolator for electrical isolation. It is designed for high-power rectification applications requiring robust thermal management and UL recognition.

Diode Arrays Feature Summary

• Electrically isolated heatsinking capability for easy mounting on common heatsinks
• Compression bonded elements ensuring reliable performance under high stress
• Aluminum nitride isolator providing low thermal impedance
• UL recognized for safety compliance in industrial environments

Diode Arrays Applications

• Bridge circuits
• AC & DC motor drives
• Battery supplies
• Power supplies
• Large IGBT circuit front ends

Diode Arrays Procurement Notes

Verify the specific ordering suffix to ensure correct packaging and terminal configuration. Confirm that the replacement part number matches the original electrical ratings, including the 1400 V reverse voltage and 600 A current capacity. Check for any changes in mechanical dimensions or mounting hole patterns when substituting with equivalent modules from other manufacturers.

Diode Arrays Selection Notes

Select this module for applications requiring high-voltage isolation and significant current handling. The POW-R-BLOK design offers improved current capability due to low thermal impedance. Ensure the cooling system can handle the thermal dissipation requirements associated with 600 A operation. Consider the physical size constraints provided by the outline dimensions before integration into the final assembly.

Diode Arrays Part Context

This component belongs to Powerex's POW-R-BLOK family of dual diode modules. These modules are engineered for demanding power electronics applications. The series is known for its compact yet powerful series connection capabilities. The LD411460 specifically addresses needs for high-current rectification with integrated isolation features.

Diode Arrays Replacement Considerations

The AM-LD411460 from EnergiT is listed as a direct replacement analogue device. Verify pinout compatibility and thermal characteristics when using alternative sources. Ensure the substitute meets the same 1400 V and 600 A specifications.
