LDD21967M03A-068

Overview

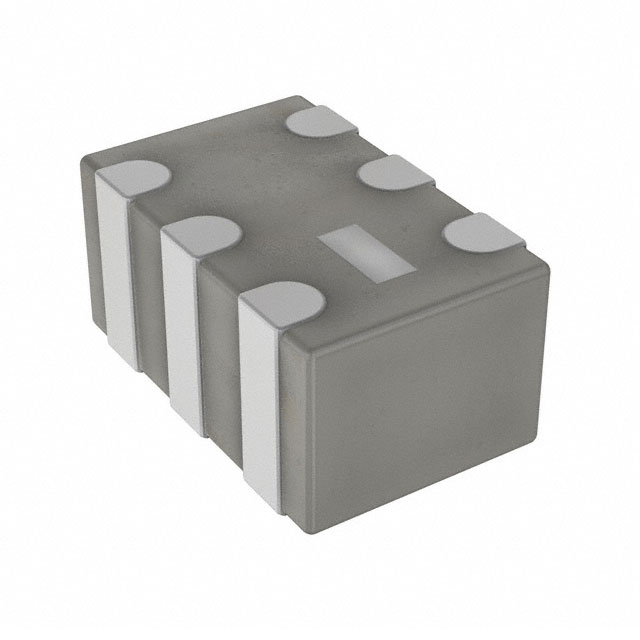

The LDD21967M03A-068 is a surface-mount RF signal filter manufactured by Murata Electronics. It operates at a center frequency of 967 MHz and utilizes an 0805 (2012 Metric) package with a 6-pad configuration. The component is designed for high-frequency signal conditioning applications. Current distribution data indicates the product is scheduled for obsolescence and will be discontinued by the manufacturer.

Feature Summary

• Provides stable signal transmission in high-frequency circuits
• Utilizes a compact 0805 surface-mount footprint with six connection pads

Applications

• RF signal conditioning
• High-frequency connector interfaces
• Stable signal transmission systems

Procurement Notes

Verify current availability status as this component is officially scheduled for obsolescence and discontinuation by the manufacturer. Confirm end-of-life timelines before finalizing design-in decisions. Check regional delivery restrictions, as some distributors may not supply obsolete parts in all territories. Ensure alternative sourcing strategies are prepared due to limited future stock.

Selection Notes

Select this component only if the specific 967 MHz center frequency and 0805 6-pad form factor match the circuit requirements. Consider that the part is obsolete; evaluate long-term supply chain stability. Verify compatibility with existing PCB layouts requiring six pads in an 0805 envelope. Assess whether newer Murata alternatives offer similar electrical characteristics without obsolescence risks.

Part Context

This device belongs to Murata's RF filter portfolio, specifically engineered for signal conditioning tasks. It is categorized under signal conditioning components within the broader passive electronic parts market. The 0805 package size allows for dense PCB mounting, while the six-pad design supports specific impedance matching or shielding requirements typical in advanced RF modules.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult Murata's official obsolescence notices or contact authorized distributors for recommended next-generation replacements that maintain equivalent 967 MHz performance and 0805 dimensions.
