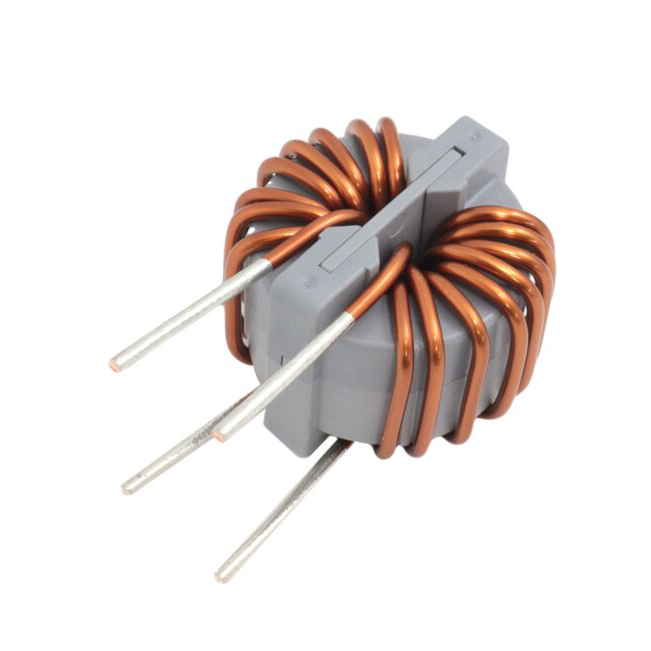

LDFL020342LJUV0E is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CHOKE COIL. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for LDFL020342LJUV0E
- Description：CHOKE COIL
- Series：FL
- Mfr：Chemi-Con
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：20A
- DC Resistance (DCR) (Max)：8mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：700V
- Operating Temperature：-40°C ~ 130°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.929" Dia (49.00mm)
- Height (Max)：1.988" (50.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：3.4 mH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for LDFL020342LJUV0E
Common Mode Chokes Overview
The Chemi-Con LDFL020342LJUV0E is a common mode choke designed for noise suppression. It features a maximum DC resistance of 8 mOhms and supports a current rating of 20A. The component operates with a voltage rating of 700V. These specifications define its electrical performance characteristics within the common mode filter category.
Common Mode Chokes Feature Summary
- Provides common mode noise filtering capabilities
- Supports high current operation up to 20A
- Engineered for low DC resistance applications
Common Mode Chokes Applications
- Common mode noise suppression in electronic circuits
- Power line filtering applications
- EMI reduction in industrial equipment
Common Mode Chokes Procurement Notes
Verify the specific part number LDFL020342LJUV0E against official Nippon Chemi-Con documentation to confirm availability and technical validity. Ensure compatibility with system requirements before procurement. Contact authorized distributors for current stock status and lead times, as these details are subject to change and require direct vendor confirmation.
Common Mode Chokes Selection Notes
Select this component when a common mode choke with 20A current handling and 700V rating is required. The 8 mOhm DC resistance indicates suitability for low-loss power paths. Confirm physical footprint and mounting style match the design constraints. Validate that the inductance values meet the specific noise frequency requirements of the target application circuit.
Common Mode Chokes Part Context
This component belongs to the Chemi-Con common mode choke family. Chemi-Con manufactures various passive components including capacitors and inductors. This specific model is categorized under common mode coils or filters, distinct from their aluminum electrolytic capacitor lines.
Common Mode Chokes Replacement Considerations
Consult official substitution guides for verified equivalents. Cross-reference parameters such as current rating, voltage, and DC resistance when identifying alternative parts.
