LDFL025242LGPH0E

Common Mode Chokes Overview

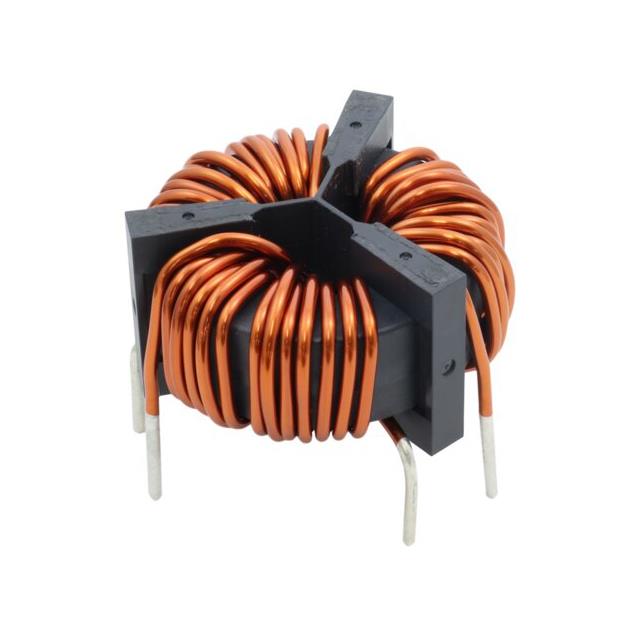

The LDFL025242LGPH0E is a through-hole common mode choke manufactured by Chemi-Con. It features an inductance of 2.4 mH measured at 10 kHz and supports a current rating of 25 A. The component exhibits a DC resistance (DCR) of 5 mOhm. Designed for line filtering applications, it utilizes a core material optimized for high-frequency noise suppression while maintaining low insertion loss under high-current conditions.

Common Mode Chokes Feature Summary

• Provides effective common mode noise attenuation for dual-line circuits
• Engineered for high current handling capability up to 25 A
• Utilizes low DC resistance design to minimize power loss

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Automotive electronic modules

Common Mode Chokes Procurement Notes

Verify the complete part number against official Chemi-Con documentation to ensure correct specifications. Confirm that the through-hole package style matches your PCB layout requirements. Check for any specific environmental ratings or RoHS compliance status listed in the manufacturer's datasheet before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise rejection with high current capacity. Ensure the operating temperature range aligns with your system's thermal environment. Consider the physical dimensions and lead spacing to verify compatibility with assembly processes and available board space constraints.

Common Mode Chokes Part Context

This component belongs to Chemi-Con's passive filter product portfolio. The manufacturer specializes in electromagnetic interference suppression components alongside capacitors and inductors. This specific choke is designed for general-purpose line filtering where size constraints are less critical than high current performance and reliable noise reduction.

Common Mode Chokes Replacement Considerations

Consult official Chemi-Con substitution guides for verified alternatives. Cross-reference inductance values, current ratings, and DCR specifications when evaluating potential substitutes. Ensure any replacement maintains compatible mounting styles and electrical characteristics for your specific application.
