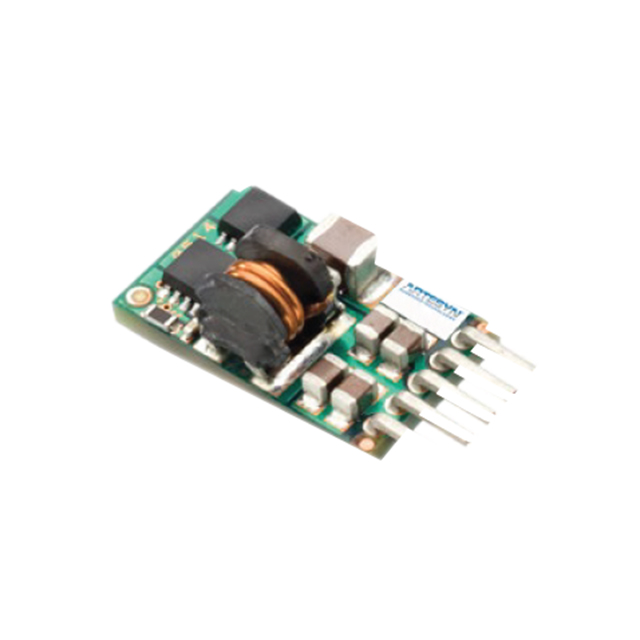

LDO06C-005W05-VJ

LDO06C-005W05-VJ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.59-5.1V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LDO06C-005W05-VJ

• Description：DC DC CONVERTER 0.59-5.1V 30W
• Series：LDO06C (30W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：0.59 ~ 5.1V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：30 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.41" L x 0.37" W x 0.65" H (10.4mm x 9.4mm x 16.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for LDO06C-005W05-VJ
