LE20

Power Line Filter Modules Overview

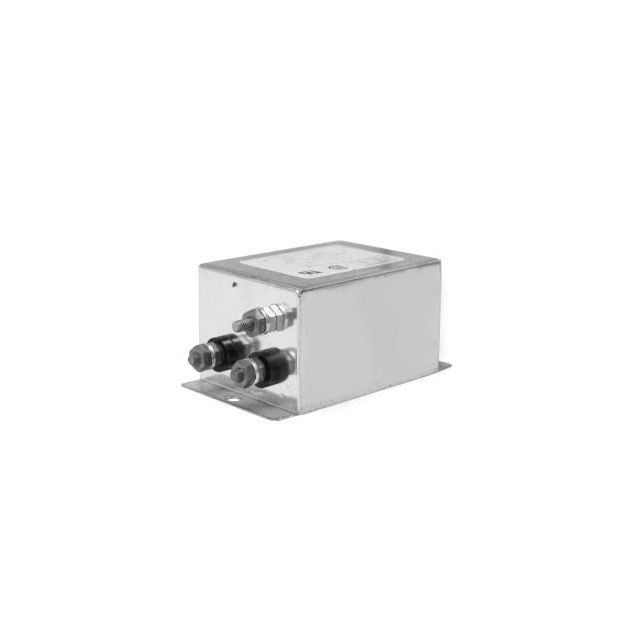

The Astrodyne TDI LE20 is a single-phase, single-stage power line filter module designed for general-purpose electromagnetic interference suppression. It features a rated current of 20 A and operates at standard frequencies of 50 Hz or 60 Hz. The unit utilizes quick-connect terminals for circuit integration and supports chassis mounting configurations. Key electrical parameters include a maximum leakage current ranging from 0 to 1.8 mA, ensuring safety compliance in sensitive applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for cost-effective EMI reduction
• Low leakage current design suitable for medical and sensitive equipment
• Economical construction optimized for high-volume industrial use

Power Line Filter Modules Applications

• General purpose electronic equipment
• Industrial control systems
• Medical devices requiring low leakage

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm exact physical dimensions and terminal spacing before integration. Ensure the operating environment temperature remains within the specified limits for the RP225 series components if used in similar thermal conditions. Confirm RoHS compliance status with the manufacturer for regulatory adherence in restricted substance zones.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution meets the attenuation requirements without necessitating complex multi-stage topologies. The 20 A rating suits moderate load applications where space constraints preclude larger filters. Evaluate the 3E series compatibility if modular expansion is required for future system upgrades.

Power Line Filter Modules Part Context

This module belongs to the Astrodyne TDI EMC filter portfolio, specifically categorized under economical low-leakage designs. It complements the broader RP series lineup by offering a simplified alternative for applications where high-performance dual-stage filtering is unnecessary. The product emphasizes reliability and ease of installation in standard chassis environments.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and thermal characteristics when considering generic alternatives.
