LED3GRE

LED Indication - Discrete Overview

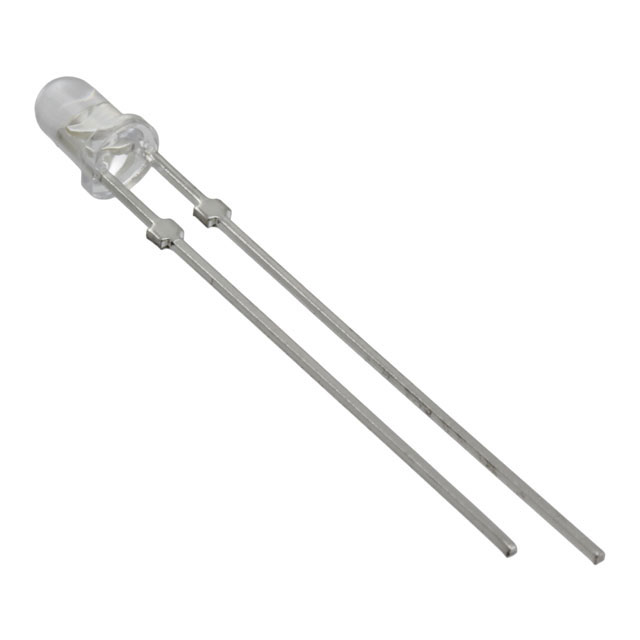

The LED3GRE is a 3mm radial green light-emitting diode manufactured by Lumimax Optoelectronic Technology. It features a clear lens and operates at a forward voltage of 3.2V. The device emits light within the 515nm to 525nm wavelength range, providing high visibility for indication purposes. Typical luminous intensity ranges from 7000mcd to 9000mcd. This through-hole component is designed for standard PCB mounting applications requiring reliable green optical signaling.

LED Indication - Discrete Feature Summary

• Radial leaded package construction for through-hole mounting
• Clear lens design for optimal light transmission
• Green emission spectrum centered around 515nm

LED Indication - Discrete Applications

• Panel indicator lights
• Status indication in electronic devices
• Machine vision lighting components

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for forward current limits and reverse voltage ratings before integration. Confirm that the 3.2V forward voltage aligns with your circuit design requirements. Ensure compatibility with standard 3mm hole spacing on printed circuit boards. Check for any RoHS compliance documentation if required for your manufacturing process.

LED Indication - Discrete Selection Notes

Select this component when a bright green indication is required in space-constrained designs utilizing radial leads. Consider the 7000-9000mcd intensity range for visibility needs. Compare against other colors in the LED3 series if different wavelengths are needed. Ensure the 3.2V drop is compatible with your drive voltage source.

LED Indication - Discrete Part Context

This part belongs to the LED3 series, which includes various color options such as orange (LED3ORG). The series offers consistent 3mm dimensions across different spectral outputs. Lumimax Optoelectronic Technology produces this line for general indication and specialized industrial lighting applications.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 3mm radial green LEDs offering similar 515-525nm wavelengths. Verify mechanical footprint compatibility and electrical characteristics like forward voltage and intensity before substitution.
