LEDDC-5BLU

LED Indication - Discrete Overview

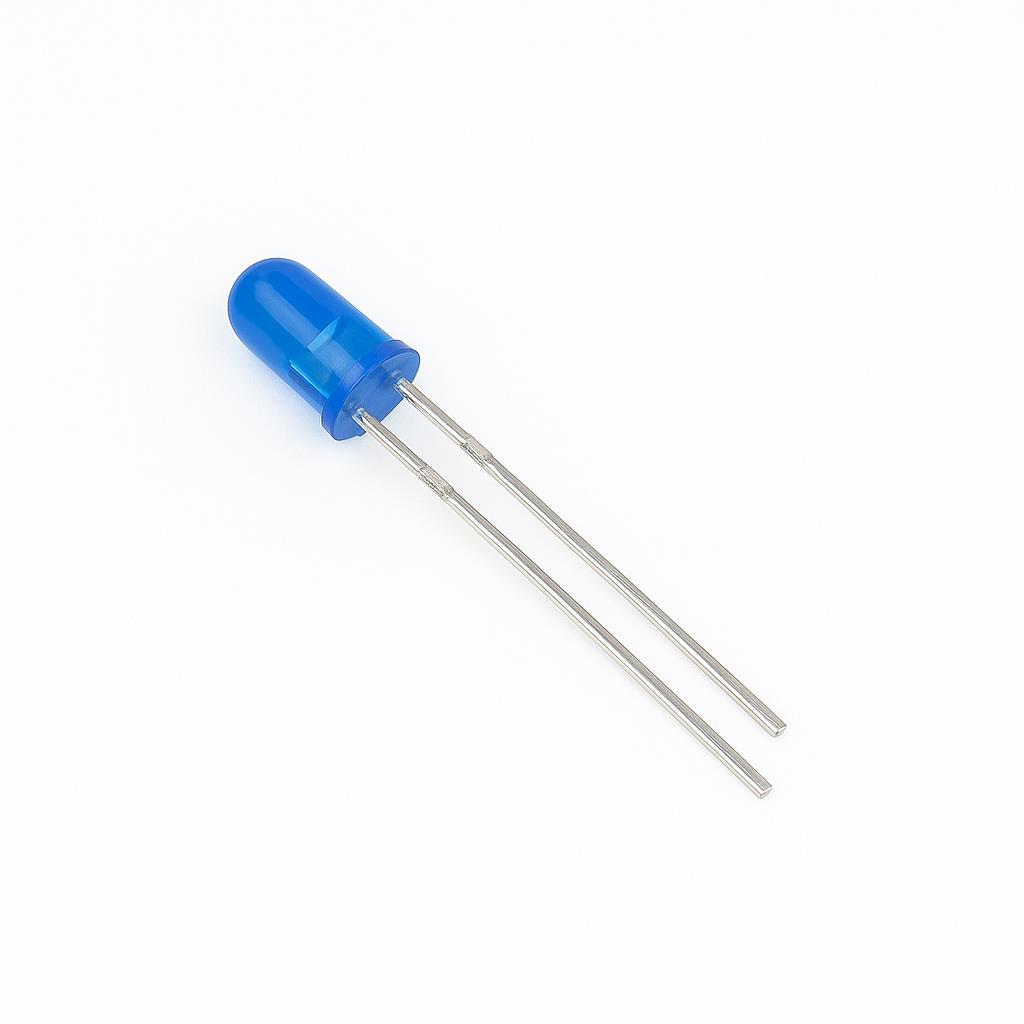

The LEDDC-5BLU is a 5mm blue diffused light-emitting diode manufactured by Lumimax Optoelectronic Technology. It operates at a forward voltage of 3.2V and emits light at a wavelength of 465nm. The component features radial leads for through-hole mounting. Absolute maximum ratings specify a maximum power dissipation of 80mW and a defined limit for continuous forward current, ensuring reliable operation within specified thermal conditions.

LED Indication - Discrete Feature Summary

• Provides blue illumination with a diffused lens configuration for broad visibility.
• Utilizes radial lead construction suitable for standard printed circuit board assembly.
• Engineered for discrete indication applications requiring specific spectral output.

LED Indication - Discrete Applications

• Machine vision system status indicators
• Industrial image processing equipment signaling
• General electronic device front panel indication

LED Indication - Discrete Procurement Notes

Verify the exact datasheet version directly from Lumimax Optoelectronic Technology or authorized distributors to confirm current absolute maximum ratings and electrical characteristics. Ensure that procurement channels provide official documentation matching the LEDDC-5BLU part number to guarantee compliance with specified forward voltage and wavelength parameters.

LED Indication - Discrete Selection Notes

Select this component when a 5mm radial package with diffused optics is required for blue indication. Confirm that the application environment supports the specified 80mW power dissipation limit. Verify that the 465nm wavelength aligns with the optical requirements of the target machine vision or industrial imaging system.

LED Indication - Discrete Part Context

This discrete LED belongs to the LEDDC series offered by Lumimax Optoelectronic Technology, which specializes in lighting solutions for machine vision and industrial image processing. The series includes various colors such as green, red, white, and yellow, providing standardized options for different visual signaling needs in automated environments.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 5mm blue diffused LEDs only if mechanical dimensions and electrical ratings match exactly. Verify that substitute components maintain the 465nm wavelength and 3.2V forward voltage to ensure compatibility with existing machine vision lighting systems.

LED Indication - Discrete FAQ

What is the emission wavelength of the LEDDC-5BLU?

The LEDDC-5BLU emits light at a wavelength of 465nm.

What is the maximum power dissipation rating?

The absolute maximum power dissipation is rated at 80mW at an ambient temperature of 25°C.
