LEDDC-5YEL

LED Indication - Discrete Overview

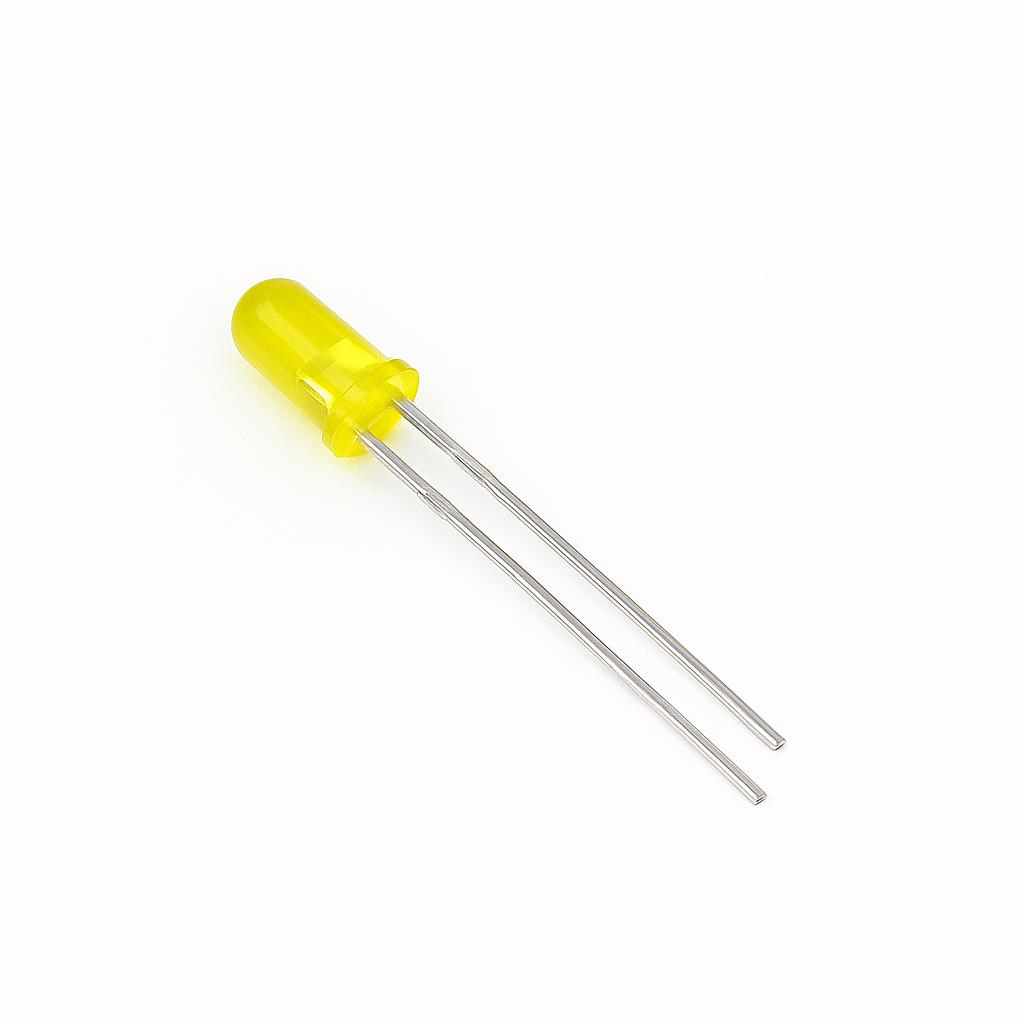

The LEDDC-5YEL is a discrete yellow light-emitting diode manufactured by Lumimax Optoelectronic Technology. It features a radial leaded package with a wavelength of 587nm and a forward voltage of 2.2V. The component is designed for use in ordinary electronic equipment, including office, communication, and household applications.

LED Indication - Discrete Feature Summary

• Radial through-hole construction for standard mounting
• Yellow emission at 587nm wavelength
• Forward voltage rating of 2.2V

LED Indication - Discrete Applications

• Office equipment indication
• Communication equipment status display
• Household appliance indicators

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal characteristics before integration. Ensure compatibility with existing PCB layouts for radial leads. Confirm RoHS compliance status if required by project specifications.

LED Indication - Discrete Selection Notes

Select this component for general-purpose indicator applications requiring yellow illumination. Consider the 2.2V forward voltage drop when designing current-limiting circuits. Verify mechanical fit within the target enclosure for the radial package style.

LED Indication - Discrete Part Context

This part belongs to Lumimax's discrete LED indication series. It complements other color variants such as blue, green, red, and white LEDs within the same product family, providing standardized form factors for consistent design implementation across different signal colors.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 5mm yellow radial LEDs from different manufacturers. Ensure equivalent wavelength and forward voltage ratings are maintained to preserve circuit performance without modification.

LED Indication - Discrete FAQ

What is the emission color of the LEDDC-5YEL?

The LEDDC-5YEL emits yellow light with a specified wavelength of 587nm.

What type of package does this LED use?

It utilizes a radial leaded package suitable for through-hole mounting on printed circuit boards.
