LF1206C202R-10

Chip Ferrite Bead Overview

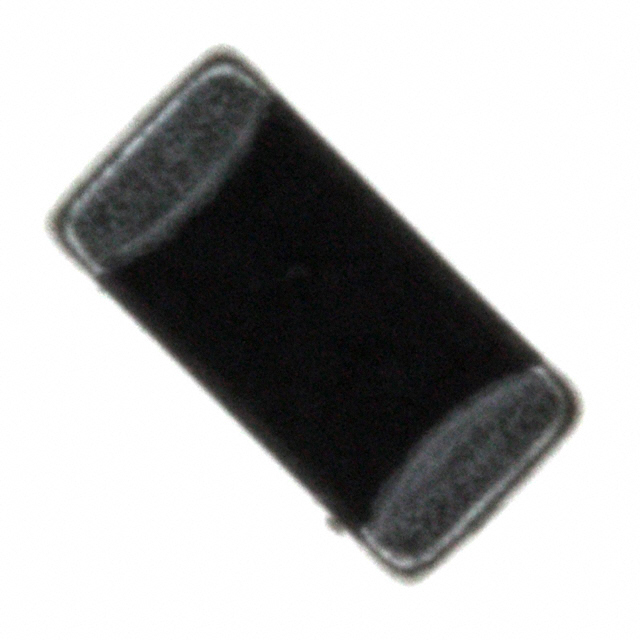

The LF1206C202R-10 is a single-line ferrite bead chip manufactured by Laird-Signal Integrity Products, designed for surface mount assembly in the 1206 (3216 Metric) package. It provides an impedance of 915 Ohms at 100 MHz with a maximum DC resistance of 500 milliohms and a rated current of 300mA. The component operates within a temperature range of -40°C to 125°C and measures 3.20mm x 1.60mm x 1.10mm.

Chip Ferrite Bead Feature Summary

• Provides high impedance attenuation for electromagnetic interference suppression on power and signal lines
• Supports surface mount integration into compact electronic circuit boards
• Maintains stable electrical characteristics across a wide industrial temperature range

Chip Ferrite Bead Applications

• High-frequency noise filtering in portable consumer electronics
• Signal integrity protection in communication interface circuits
• Power line decoupling in embedded systems

Chip Ferrite Bead Procurement Notes

Verify the manufacturer part number LF1206C202R-10 against official Laird datasheets to confirm impedance and current ratings. Ensure compatibility with RoHS3 standards and check for authorized distribution channels to guarantee component authenticity and traceability before procurement.

Chip Ferrite Bead Selection Notes

Select this component when a 1206 footprint is required for EMI suppression with specific 915 Ohm impedance needs. Consider the 300mA current rating and 500 milliohm DC resistance limits to ensure the device meets the thermal and electrical requirements of the target circuit design without saturation.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the Laird Signal Integrity Products portfolio, focusing on passive components for electromagnetic compatibility. It serves as a critical element in managing radio frequency interference within modern electronic assemblies, ensuring compliance with regulatory emission standards through effective high-frequency energy dissipation.

Chip Ferrite Bead Replacement Considerations

HZ1206C202R-00 is a documented substitute part number from the same manufacturer family. Verify pinout compatibility and exact impedance curves before substitution.
