LF15 S

Power Line Filter Modules Overview

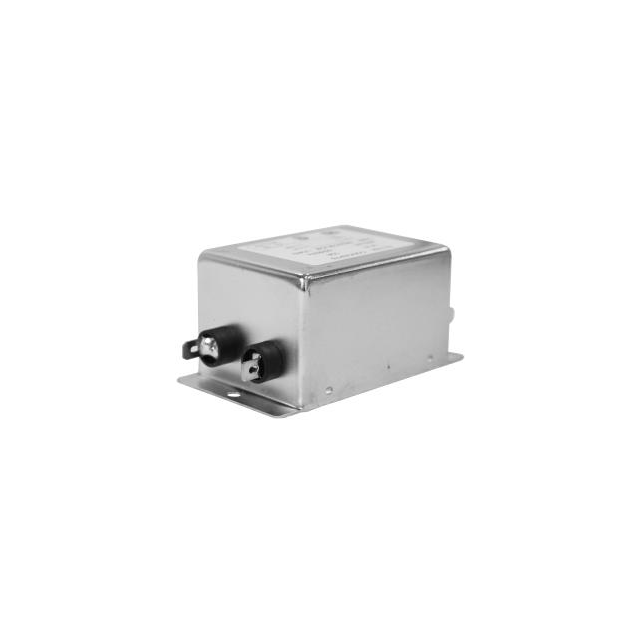

The LF15 S is a single-stage power line filter module from the Astrodyne TDI series. It operates at standard frequencies of 50 Hz and 60 Hz with a voltage rating of 250 VAC. The unit features a maximum leakage current of 450 uA and measures 109.73 mm in length. Packaged in bulk, it is designed for chassis or panel integration within power conditioning applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture
• Low leakage current specification
• Compact linear form factor

Power Line Filter Modules Applications

• Power line filtering modules
• Industrial power conditioning
• Electronic equipment input stages

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact terminal configurations and mounting hole dimensions prior to integration. Ensure the 450 uA leakage current aligns with safety standards for the intended medical or industrial application environment. Confirm physical compatibility with existing chassis cutouts given the 109.73 mm length constraint.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-stage solution is required for 250 VAC systems. The low leakage characteristic makes it suitable for sensitive loads. Evaluate space constraints against the 109.73 mm dimension. Consider thermal management requirements based on expected load currents and ambient operating temperatures.

Power Line Filter Modules Part Context

This module belongs to the Astrodyne TDI power line filter portfolio, which provides EMI/RFI suppression for AC power inputs. The LF15 S represents a standardized modular design intended for easy integration into larger power supply assemblies or distribution panels.

Power Line Filter Modules FAQ

What is the maximum leakage current for the LF15 S?

The maximum leakage current is specified as 450 uA.

What are the physical dimensions of the LF15 S?

The module has a length of 109.73 mm.
