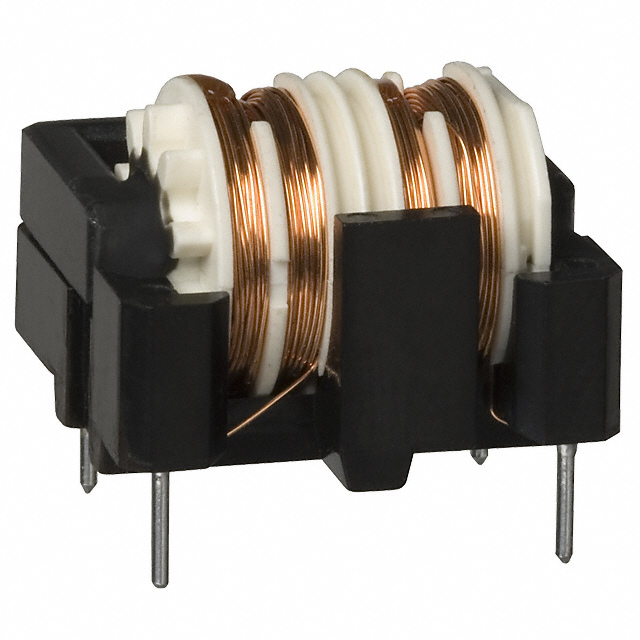

LF2115NP-223 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is CMC 22MH 400MA 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for LF2115NP-223
- Description：CMC 22MH 400MA 2LN TH
- Series：LF
- Mfr：Sumida America Components Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：400mA
- DC Resistance (DCR) (Max)：2.04Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.827" L x 0.827" W (21.00mm x 21.00mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：22 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for LF2115NP-223
Common Mode Chokes Overview
The LF2115NP-223 is a surface-mount AC common mode choke manufactured by Sumida America Components Inc. It features a 22 mH inductance measured at 1 kHz and supports a maximum current of 400 mA. The component exhibits a maximum DC resistance (DCR) of 2.04 Ohms. Designed for through-hole mounting, it serves as an effective filter for suppressing electromagnetic interference in electronic circuits.
Common Mode Chokes Feature Summary
- Provides high inductance for effective noise suppression
- Compact surface-mount design for space-constrained applications
- Rated for continuous operation up to 400 mA
Common Mode Chokes Applications
- AC line filtering
- Electromagnetic interference suppression
- Signal integrity enhancement in consumer electronics
Common Mode Chokes Procurement Notes
Verify the specific package type against official datasheets, as conflicting data exists regarding through-hole versus surface-mount configurations. Confirm the manufacturer part number matches the required specifications before ordering. Ensure compatibility with automated assembly processes if applicable.
Common Mode Chokes Selection Notes
Select this component when high inductance is required for low-frequency noise filtering. Evaluate the 400 mA current rating against circuit requirements. Consider the physical footprint and mounting style constraints during PCB layout design.
Common Mode Chokes Part Context
This component belongs to Sumida's passive components portfolio, specifically within their common mode choke series. Sumida specializes in coil-related components for various industrial and consumer applications.
Common Mode Chokes FAQ
What is the inductance value of the LF2115NP-223?
The inductance is 22 mH, measured at a frequency of 1 kHz.
What is the maximum current rating for this component?
The maximum current rating is 400 mA.
