LFB095051-000

Overview

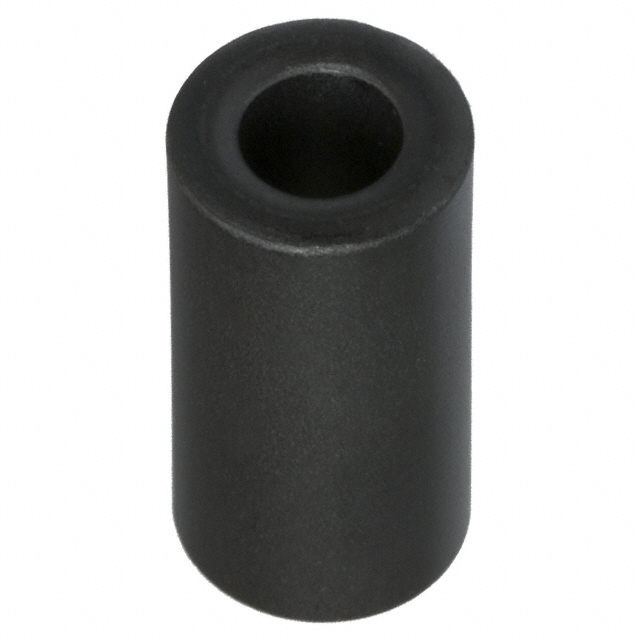

The LFB095051-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 86 Ohms at 5 MHz. The component features an inner diameter of 0.201 inches (5.10 mm) and an outer diameter of 0.374 inches (9.50 mm). Its physical length is 0.750 inches (19.05 mm). This part is designed for cable wrapping to suppress electromagnetic interference.

Feature Summary

• Solid construction for durable cable mounting
• Free-hanging design allows easy installation on existing cables
• Provides effective EMI suppression in electronic applications

Applications

• Cable filtering for electronic equipment
• Electromagnetic interference suppression
• Signal integrity enhancement in wiring harnesses

Procurement Notes

Verify the specific impedance requirement of 86 Ohms at 5 MHz against your application needs. Confirm that the cable diameter falls within the 5.10 mm inner diameter tolerance. Check current RoHS compliance status as sources vary, and ensure the bulk packaging format aligns with your assembly process requirements.

Selection Notes

Select this component when a non-inductive, snap-on ferrite solution is required for low-frequency noise reduction. The 5.10 mm bore size dictates the maximum cable thickness it can accommodate. Consider the 86 Ohm impedance value specifically for frequencies around 5 MHz rather than higher RF ranges.

Part Context

This component belongs to the LF series of ferrite cores from Laird-Signal Integrity Products. These cores are distinct from surface-mount beads or common-mode chokes, serving as passive magnetic filters for wires. They are used to attenuate high-frequency noise currents traveling along cables without affecting the signal integrity of the conductors inside.

Replacement Considerations

Direct substitutes must match the 5.10 mm ID, 9.50 mm OD, and 86 Ohm @ 5 MHz specifications. Verify material composition and temperature ratings if operating in extreme environments. Ensure the replacement maintains the same free-hanging form factor for mechanical compatibility.
