LFB127079-000

Overview

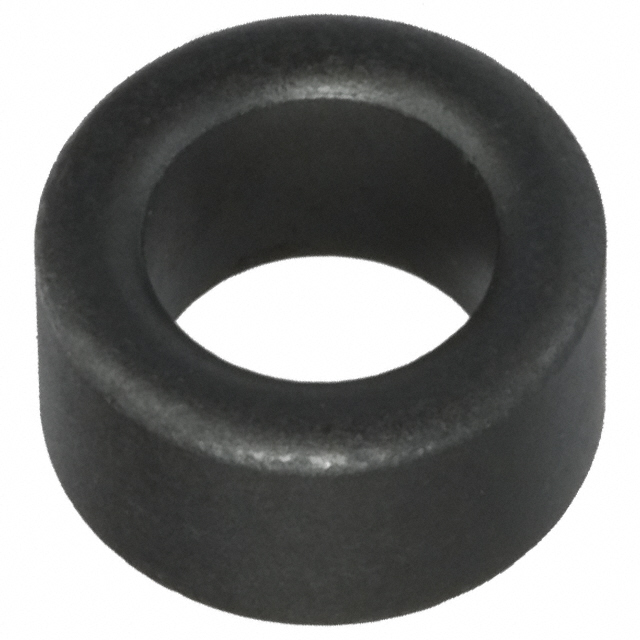

The LFB127079-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It features a round design with an impedance of 25 Ohms at the test frequency. The component has a length of 7.92mm and is intended for cable noise suppression.

Feature Summary

• Solid free-hanging construction for easy installation on cables
• Round design facilitates uniform magnetic field distribution around conductors
• Provides electromagnetic interference reduction for high-frequency noise

Applications

• Cable noise suppression
• Electromagnetic interference filtering
• High-frequency noise reduction on signal lines

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet to ensure compatibility with the target cable diameter. Confirm that the solid core design meets the mechanical requirements of the assembly. Check for RoHS compliance status if required by the end product specifications.

Selection Notes

Select this component when a simple, non-split ferrite core is sufficient for EMI suppression. Ensure the inner diameter accommodates the cable size. Consider the 25 Ohm impedance rating relative to the noise frequencies present in the application environment.

Part Context

This part belongs to the ferrite core category from Laird-Signal Integrity Products. It is distinct from chip ferrite beads or split cores, offering a standalone solution for cable management and noise control without requiring PCB mounting.

Replacement Considerations

No direct substitute part numbers are documented in the provided source material. Verify compatibility with alternative ferrite cores based on impedance, inner diameter, and material properties.
