LFB180100-000

Overview

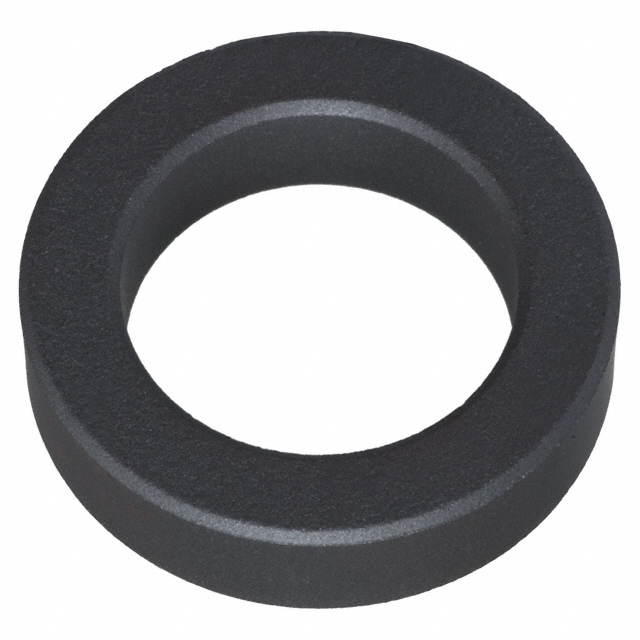

The LFB180100-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products, designed for EMI suppression on cables and wiring. It exhibits an impedance of 29 Ohms at 5 MHz. The component features a cylindrical geometry with an inner diameter of 10.00 mm (0.394 inches) and an outer diameter of 18.10 mm (0.713 inches). Its total length measures 10.00 mm (0.394 inches). This passive filter element is intended to be mounted directly onto conductors to attenuate high-frequency noise.

Feature Summary

• Solid construction for durable cable mounting
• Free-hanging design allows easy installation on existing wires
• Provides electromagnetic interference attenuation in the specified frequency range

Applications

• Cable and wiring EMI filtering
• High-frequency noise suppression on signal lines
• Passive component integration in electronic assemblies

Procurement Notes

Verify the specific impedance value at 5 MHz against your system's noise spectrum requirements. Confirm that the 10.00 mm inner diameter accommodates the target cable gauge without excessive force or loose fit. Ensure the solid material composition meets environmental compliance standards required for your final product assembly.

Selection Notes

Select this component when a non-split, solid ferrite core is required for permanent cable installations. The 29 Ohm impedance at 5 MHz targets specific low-to-mid frequency interference profiles. Consider the physical dimensions to ensure adequate clearance within the enclosure or harness routing path compared to split-core alternatives.

Part Context

This part belongs to the ferrite core category within Laird-Signal Integrity Products' portfolio. It serves as a passive EMI suppression solution distinct from chip beads or surface-mount inductors. The product is categorized under cable ferrites, focusing on bulk material properties rather than integrated circuit protection.
