LFCN-800+

Overview

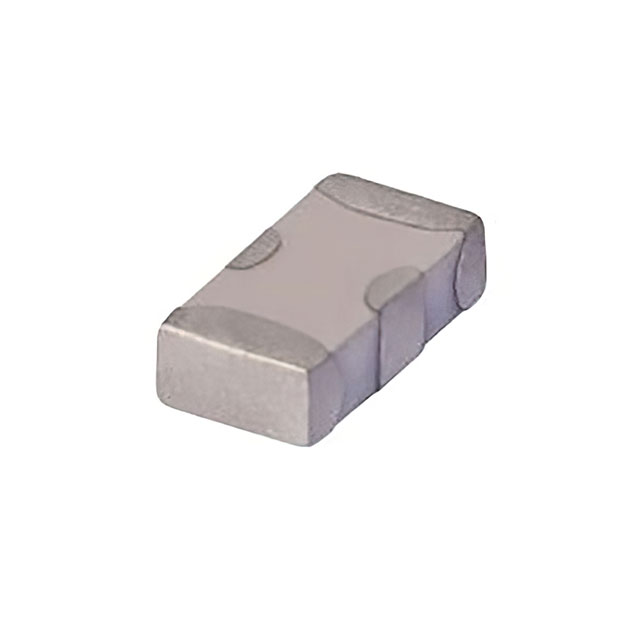

The LFCN-800+ is a low-pass filter manufactured by Mini-Circuits, designed for RF and microwave applications. It operates from DC to 800 MHz with a characteristic impedance of 50Ω. The component utilizes LTCC technology and is housed in an FV1206 surface-mount package. This ceramic filter provides signal filtering capabilities within the specified frequency range.

Feature Summary

• Utilizes LTCC construction for compact surface-mount integration
• Provides low-pass filtering functionality up to 800 MHz
• Designed for 50Ω system impedance environments

Applications

• RF signal conditioning circuits
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm that the required frequency range and impedance match the application design. Check for any environmental ratings or handling instructions provided in the datasheet before procurement.

Selection Notes

Select this component when a low-pass filter with a cutoff near 800 MHz is required. Ensure the circuit layout supports the FV1206 package dimensions. Verify that the LTCC technology meets the thermal and mechanical requirements of the final assembly environment.

Part Context

This component belongs to the LFCN series of ceramic low-pass filters from Mini-Circuits. The series offers various cutoff frequencies while maintaining consistent packaging and impedance characteristics. The LFCN-800+ specifically targets applications requiring filtering below 800 MHz.

Replacement Considerations

Consult Mini-Circuits documentation for direct substitutes. Alternative models may include different cutoff frequencies or package styles within the same product family.
