LFCV-1552+

Overview

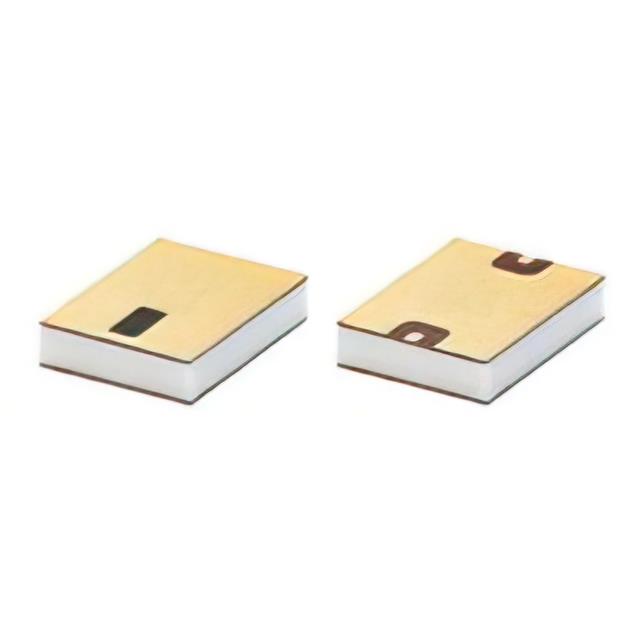

The LFCV-1552+ is a low-pass filter manufactured by Mini-Circuits, utilizing Low-Temperature Co-fired Ceramic (LTCC) technology. It features a passband extending from DC to 15500 MHz and operates with a characteristic impedance of 50 Ohms. The component is housed in the JV1210C-7 surface-mount case style. Official documentation indicates an insertion loss of 0.9 dB within the passband.

Feature Summary

• Utilizes LTCC construction for high-performance RF filtering
• Provides signal attenuation above the 15500 MHz cutoff frequency
• Designed for surface-mount integration

Applications

• Connectivity systems
• Industrial equipment

Procurement Notes

Verify the specific datasheet version when sourcing the LFCV-1552+. Confirm that the ordering suffix matches the required package variant. Ensure compatibility with the target circuit's impedance requirements. Check for any application notes regarding DC decoupling capacitors if voltage or current is present at the ports. Validate the manufacturer source directly.

Selection Notes

Select this component for applications requiring a low-pass response up to 15.5 GHz. The 50 Ohm impedance rating must match the system design. Consider the JV1210C-7 footprint for PCB layout. Evaluate the 0.9 dB insertion loss against system budget constraints. Verify thermal and mechanical suitability for the intended environment.

Part Context

This part belongs to Mini-Circuits' LTCC low-pass filter series. Similar models include the LFCV-1652+, which offers a passband up to 16500 MHz. These components are designed for RF applications where compact size and reliable performance are required. The series supports various connectivity and industrial use cases.

Replacement Considerations

The LFCV-1652+ is a related model with a higher cutoff frequency of 16500 MHz. No other direct substitute part numbers are confirmed in the provided data.
