LFCW-113+

$6.45

Description：LOW PASS FLTR / SURF MT / ROHS
Series：LFCW
Mfr：Mini-Circuits
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a81b45f6ec77 Category: Ceramic Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW PASS FLTR / SURF MT / ROHS
Series：LFCW
Mfr：Mini-Circuits
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：11.9GHz Cut Off
Impedance：50Ohm
Bandwidth：-
Insertion Loss：2.4dB
Filter Type：Low Pass
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric), 4 PC Pad
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max)：0.028" (0.70mm)

Download product information

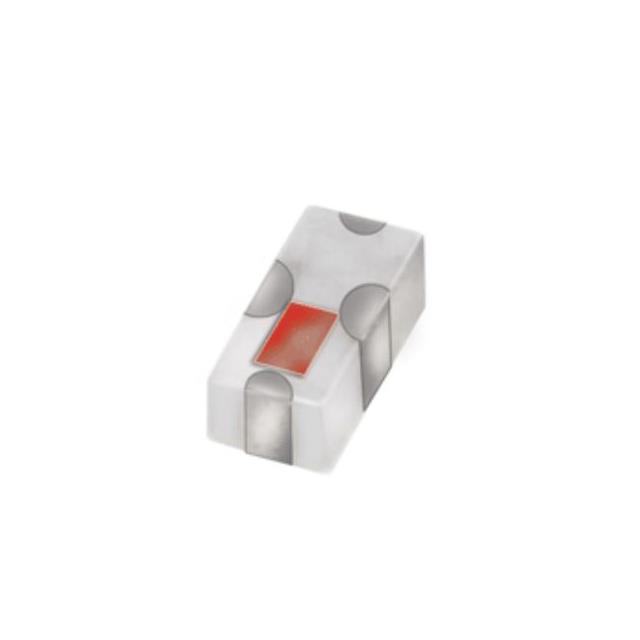

LFCW-113+

Overview

The Mini-Circuits LFCW-113+ is a low-pass filter utilizing LTCC technology with a passband from DC to 11 GHz. It features a 50 Ohm impedance and operates within a temperature range of -40°C to +85°C. The component provides approximately 1.5 dB insertion loss and is housed in a compact 0603 surface-mount package.

Feature Summary

Utilizes LTCC construction for high-frequency stability
Provides broadband filtering from DC to 11 GHz
Designed for surface-mount integration

Applications

RF signal conditioning
Microwave circuit design
Communication systems

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with standard SMT assembly processes for the 0603 case style. Cross-reference official specifications against supplier data sheets to validate performance claims before procurement.

Selection Notes

Select this component for applications requiring wideband low-pass filtering up to 11 GHz. The LTCC technology offers reliability in harsh environments. Consider the 0603 footprint for space-constrained PCB layouts. Verify thermal management requirements against the specified operating temperature range.

Part Context

Mini-Circuits specializes in RF, IF, and microwave components. The LFCW series represents their line of LTCC filters designed for high-performance applications. This model fits within their portfolio of passive components used in wireless infrastructure and test equipment.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Evaluate alternative LTCC low-pass filters with similar cutoff frequencies and impedance matching. Verify pinout and footprint compatibility if considering third-party equivalents.
