LFE2-70E-5FN900C

Field Programmable Gate Array Overview

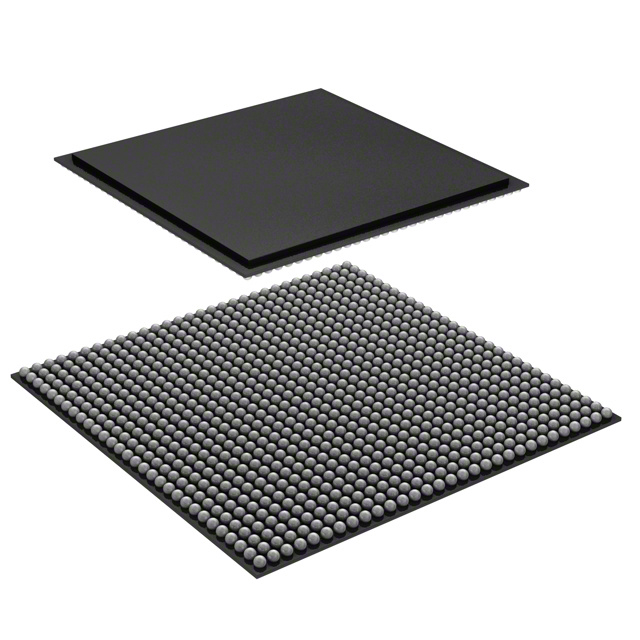

The LFE2-70E-5FN900C is a Field Programmable Gate Array (FPGA) from the LatticeECP2 family, manufactured by Lattice Semiconductor Corporation. It features 68,000 logic elements and 34,000 Adaptive Logic Modules (ALMs). The device includes 1.01 Mbit of embedded memory and supports up to 500 I/Os. Operating at a minimum voltage of 1.14 V and maximum of 1.26 V, it functions within a temperature range of 0°C to +85°C. The component utilizes an SMD/SMT installation style in a 672-ball FPBGA package, supporting data rates up to 750 Mb/s.

Field Programmable Gate Array Feature Summary

• High logic density with 68K LUTs for complex system integration
• Pre-engineered source synchronous I/O with dedicated DDR registers
• Programmable sysI/O buffer supporting diverse interface standards

Field Programmable Gate Array Applications

• Industrial automation control systems
• Automotive infotainment and display interfaces
• Telecommunications infrastructure equipment

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C' against official manufacturer documentation to confirm commercial grade temperature rating and RoHS compliance status. Ensure the ordering information matches the exact pin count and package dimensions required for the target PCB layout. Cross-reference the datasheet revision history for any recent packaging or marking changes that may affect assembly processes.

Field Programmable Gate Array Selection Notes

Select this model when high logic density is required alongside extensive I/O capabilities in a compact footprint. Compare against the LFE2M series if embedded SERDES channels are necessary for high-speed serial communication. Evaluate power consumption requirements against the 1.2V core voltage specifications to ensure adequate thermal management solutions are implemented for the operating environment.

Field Programmable Gate Array Part Context

This component belongs to the LatticeECP2 family, designed for low-power applications requiring moderate logic capacity. It serves as a bridge between smaller CPLDs and larger FPGAs, offering flexibility for prototyping and mid-volume production runs. The ECP2 architecture emphasizes energy efficiency without compromising on connectivity options or processing throughput.

Field Programmable Gate Array Replacement Considerations

LFE2-70E-6FN900C

Field Programmable Gate Array FAQ

What is the maximum data rate supported by the I/O cells?

The I/O cells support data rates up to 750 Mb/s.

Does this device include embedded SERDES channels?

No, embedded SERDES channels are only available in the LFE2M variant of the family.

What is the total amount of embedded memory?

The device contains 1.01 Mbit of embedded memory.
