LFE3-17EA-8LFTN256C

Field Programmable Gate Array Overview

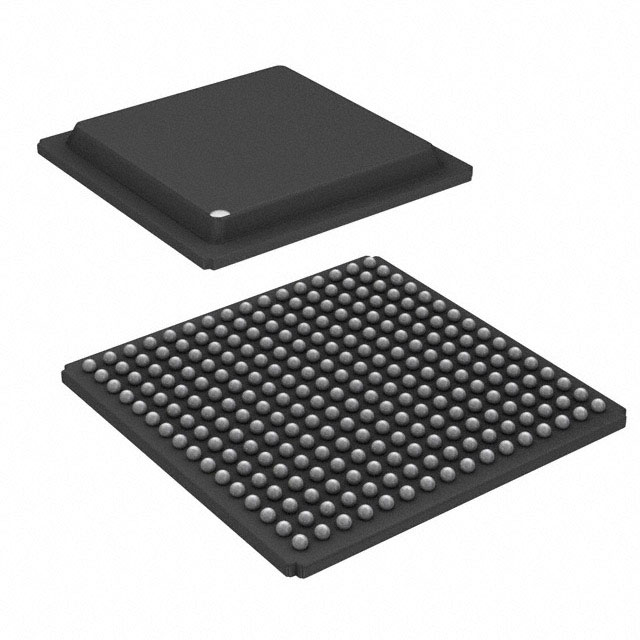

The LFE3-17EA-8LFTN256C is a Field Programmable Gate Array from the Lattice ECP3 series, manufactured by Lattice Semiconductor Corporation. It features 17,000 logic elements and 8,500 Adaptive Logic Modules within 2,125 Logic Array Blocks. The device includes 700 kbit of embedded memory and supports 133 I/O pins. Operating at a maximum frequency of 500 MHz with a data rate of 3.2 Gb/s, it functions on a 1.2V supply voltage ranging from 1.14 V to 1.26 V. Designed for commercial temperatures between 0°C and +85°C, it is housed in a 256-pin FPBGA package.

Field Programmable Gate Array Feature Summary

• Supports high-speed serial data transmission up to 3.2 Gb/s
• Integrates significant embedded memory capacity for complex logic applications
• Utilizes Adaptive Logic Module architecture for efficient resource utilization

Field Programmable Gate Array Applications

• Industrial control systems requiring programmable logic
• Telecommunications infrastructure components
• Test and measurement equipment interfaces

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and moisture sensitivity level prior to soldering. Ensure storage conditions meet humidity requirements to prevent damage before reflow assembly processes begin.

Field Programmable Gate Array Selection Notes

Select this model when 17K logic resources and 500 MHz performance are required in a 256-pin form factor. Compare against -7 speed grade variants if lower power consumption is prioritized over maximum clock frequency. Verify that the FPBGA-256 footprint matches the target PCB design constraints.

Field Programmable Gate Array Part Context

This component belongs to the Lattice ECP3 family, which targets cost-sensitive applications requiring moderate logic density. The LFE3-17EA variant represents the entry-level configuration within the 256-pin package options, offering a balance between resource availability and physical size constraints for compact electronic designs.

Field Programmable Gate Array Replacement Considerations

Check for updated Lattice ECP3 series devices with improved speed grades or enhanced feature sets. Verify pin-to-pin compatibility with alternative packages if board space allows modification. Consult official obsolescence notices to ensure long-term supply availability for production runs.
