LFE5UM5G-85F-8BG756I

Field Programmable Gate Array Overview

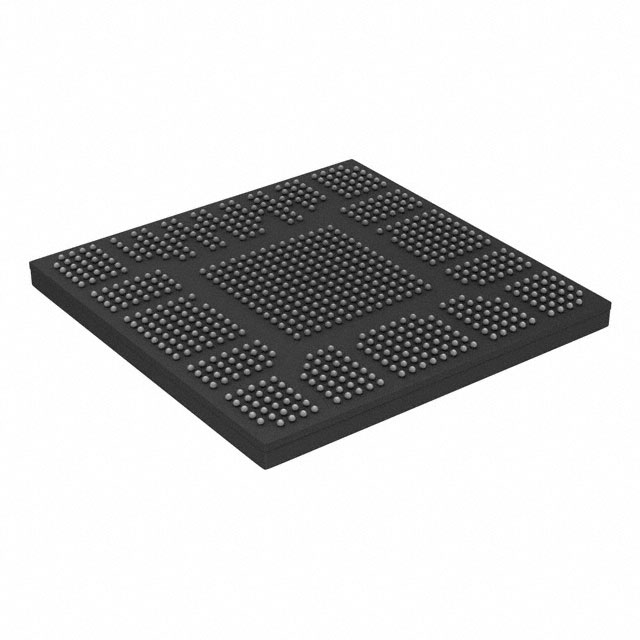

The LFE5UM5G-85F-8BG756I is a Field Programmable Gate Array from the Lattice ECP5-5G family, manufactured by Lattice Semiconductor Corporation. It features 84,000 logic elements and 42,000 Adaptive Logic Modules within 10,500 Logic Array Blocks. The device integrates 3.66 Mbit of embedded memory and supports up to 365 I/Os. Operating at a maximum frequency of 400 MHz with data rates up to 3.2 Gb/s, it utilizes a 1.2V core voltage (range 1.14V to 1.26V). Housed in a 756-ball CABGA package, it operates between -40°C and +100°C.

Field Programmable Gate Array Feature Summary

• Integrates high-speed 5G SERDES transceivers for advanced connectivity.
• Provides extensive embedded memory resources for complex data processing.
• Supports high-density I/O configurations for system expansion.

Field Programmable Gate Array Applications

• Edge intelligence and vision processing systems
• High-speed connectivity infrastructure
• Industrial automation control

Field Programmable Gate Array Procurement Notes

Verify the specific suffix '8BG756I' against the manufacturer's current datasheet to confirm pinout and electrical characteristics. Ensure compatibility with the required operating temperature range and voltage specifications before integration into the final design.

Field Programmable Gate Array Selection Notes

Select this model when high-speed serial data transmission is required alongside significant logic density. The inclusion of 5G SERDES distinguishes it from standard ECP5 variants. Verify that the 756-ball package fits the available PCB real estate and thermal constraints.

Field Programmable Gate Array Part Context

This component belongs to the Lattice ECP5-5G series, which extends the capabilities of the standard ECP5 family by adding high-speed transceivers. It targets applications requiring both programmable logic and high-bandwidth serial interfaces in a low-power form factor.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other devices within the LFE5UM5G series with compatible package footprints. Verify pin-to-pin compatibility if replacing with different capacity variants in the same family.
