LFH0Q5G37RC1D560

Overview

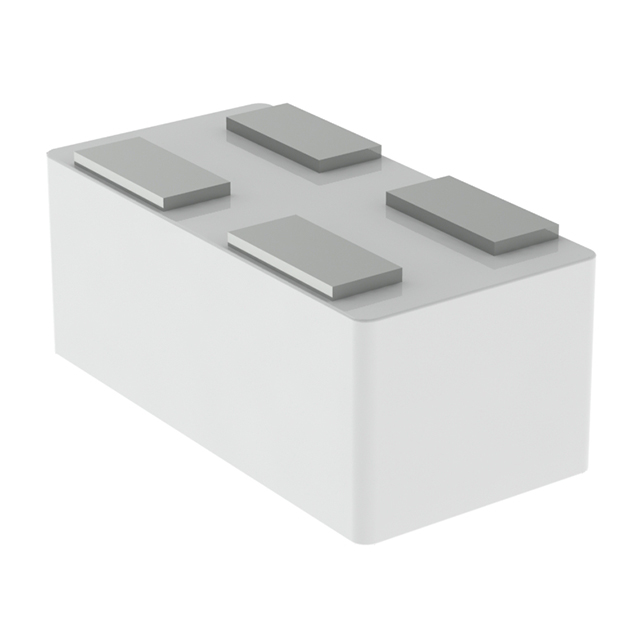

The Murata LFH0Q5G37RC1D560 is a surface-mount high-pass RF filter designed for signal conditioning applications. It features a cutoff frequency of 5.37 GHz and operates within a bandwidth range of 4.9 GHz to 5.84 GHz. The component exhibits an insertion loss of 0.55 dB and maintains a system impedance of 50 Ohms. Packaged in a compact 0202 (0505 Metric) footprint, it weighs approximately 3 grams. This device is engineered for high-frequency radio frequency filtering tasks requiring precise spectral control.

Feature Summary

• Provides high-pass filtering characteristics with a defined cutoff frequency for signal conditioning
• Engineered for low insertion loss to maintain signal integrity in high-frequency circuits
• Utilizes a miniature 0202 surface-mount package for dense board layout integration

Applications

• Radio frequency signal conditioning modules
• High-frequency communication systems requiring spectral filtering
• RF front-end circuitry design

Procurement Notes

Verify the specific ordering suffix and package variant against official Murata documentation before procurement. Confirm that the 50 Ohm impedance and 5.37 GHz cutoff specifications align with the target circuit requirements. Ensure compatibility with standard SMT assembly processes for the 0202 footprint. Cross-reference the datasheet for any handling or storage precautions relevant to this component type.

Selection Notes

Select this component when a high-pass response centered around 5.37 GHz is required. The 0.55 dB insertion loss makes it suitable for applications where signal attenuation must be minimized. The 50 Ohm impedance ensures matching with standard RF transmission lines. Consider the physical dimensions of the 0202 package during PCB layout planning to ensure adequate clearance and soldering reliability.

Part Context

This part belongs to Murata's portfolio of passive RF components, specifically high-pass filters. These devices are integral to modern wireless infrastructure and consumer electronics operating in microwave frequency bands. The LFH series typically offers stable performance across varying environmental conditions, supporting reliable operation in demanding RF environments.

Replacement Considerations

Consult official Murata substitution guides for verified equivalents. Ensure any substitute matches the 5.37 GHz cutoff, 50 Ohm impedance, and 0202 package dimensions. Verify that alternative components meet the same insertion loss and bandwidth specifications to maintain circuit performance.
