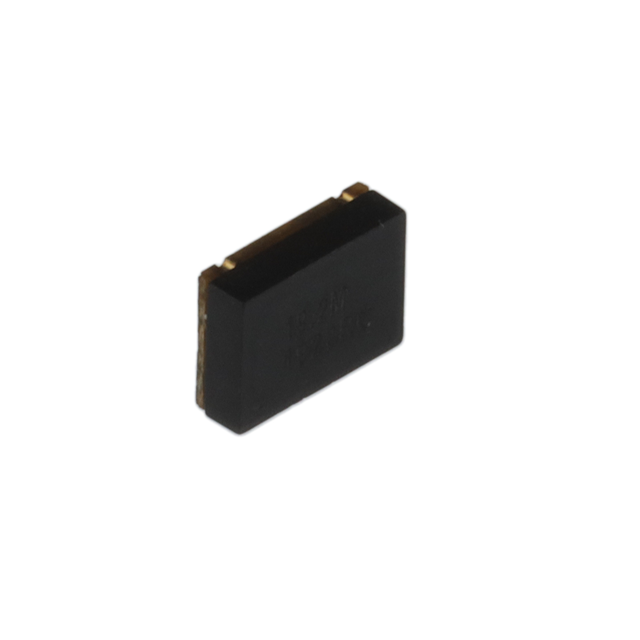

LFMCXO064079BULK

Description：XTAL OSC VCMCXO 19.2000MHZ HCMOS
Series：IQMT-100-3-B
Mfr：IQD Frequency Products
Package：Bulk

SKU:60021be068c7 Category: Oscillators Brand: IQD Frequency Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XTAL OSC VCMCXO 19.2000MHZ HCMOS
Series：IQMT-100-3-B
Mfr：IQD Frequency Products
Package：Bulk
Base Resonator：Crystal
Type：VCMCXO
Frequency：19.2 MHz
Function：-
Output：HCMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppb
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：10mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：8-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.094" (2.40mm)

Download product information

LFMCXO064079BULK

Overview

The LFMCXO064079BULK is a Microcomputer Compensated Crystal Oscillator (MCXO) manufactured by IQD Frequency Products. It operates with a control voltage of ±1.65 V and utilizes internal microcomputer compensation to maintain high frequency stability across varying environmental conditions. The device is designed for surface mount applications, providing a reliable clock signal source for precision electronic systems requiring superior long-term aging performance compared to standard TCXOs.

Feature Summary

Microcomputer-based frequency compensation technology
Surface mount ceramic package construction
Control voltage input for frequency adjustment

Applications

Precision timing reference systems
Telecommunications base stations
Test and measurement equipment

Procurement Notes

Verify the specific operating frequency and supply voltage requirements against the official datasheet before procurement. Confirm that the ±1.65 V control voltage interface is compatible with the target system design. Ensure the selected packaging variant matches the intended assembly process. Cross-reference the manufacturer's latest documentation to confirm current production status and availability constraints.

Selection Notes

Select this component when application requirements demand higher stability than standard crystal oscillators but do not necessitate the power consumption of an OCXO. Evaluate the need for external control voltage capability versus fixed-frequency alternatives. Consider the thermal environment and required aging specifications to ensure the MCXO technology provides the necessary long-term accuracy for the specific deployment scenario.

Part Context

This part belongs to the LFMCXO series of Microcomputer Compensated Crystal Oscillators from IQD Frequency Products. These devices represent a category of oscillators that combine quartz crystal resonance with digital compensation algorithms to achieve stability levels typically associated with more complex oven-controlled designs, while maintaining a smaller form factor and lower power profile.
