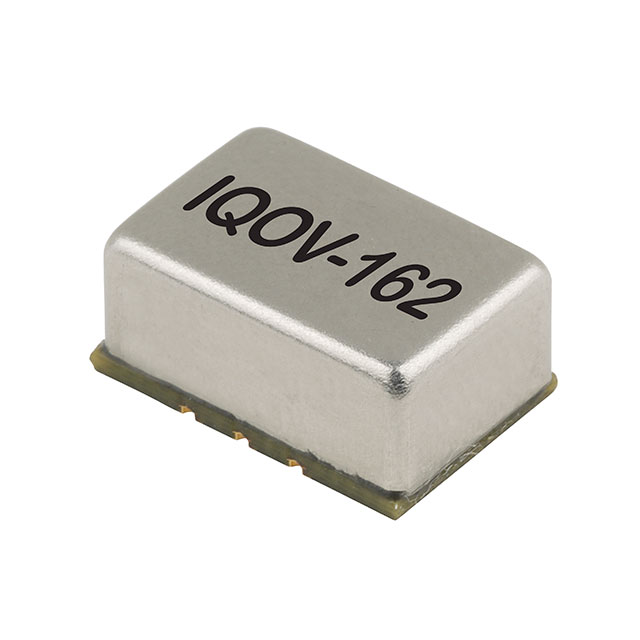

- Description：XTAL OSC VCOCXO 10.0000MHZ HCMOS
- Series：IQOV-162
- Mfr：IQD Frequency Products
- Package：Strip
- Base Resonator：Crystal
- Type：VCOCXO
- Frequency：10 MHz
- Function：-
- Output：HCMOS
- Voltage - Supply：3.3V
- Frequency Stability：±20ppb
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：300mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Size / Dimension：0.567" L x 0.374" W (14.40mm x 9.50mm)
- Height - Seated (Max)：0.268" (6.80mm)
Download product information
Overview
The LFOCXO063800BULK is a temperature-compensated oven-controlled crystal oscillator (OCXO) manufactured by IQD Frequency Products. It operates at a nominal frequency of 10 MHz with an HCMOS output format. The device is designed for surface-mount technology (SMD) applications and functions within a supply voltage range of 3.3 V. It supports an operating temperature range from -40 °C to +85 °C. The unit features a compact body dimension of 9.5 mm x 14.4 mm x 6.5 mm.
Feature Summary
- Provides high-stability frequency generation through integrated oven control technology.
- Delivers digital clock signals via HCMOS output interface.
- Engineered for reliable operation across extended industrial temperature ranges.
Applications
- Precision timing systems requiring stable reference clocks
- Telecommunications infrastructure equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific part number against official IQD Frequency Products documentation to confirm current availability status, as this component may be subject to lifecycle changes or discontinuation notices. Ensure that the required operating conditions and electrical specifications align with the target application design before procurement.
Selection Notes
Select this OCXO when high frequency stability is critical over varying environmental temperatures. The HCMOS output is suitable for digital logic interfacing. Consider the SMD package dimensions for PCB layout constraints and verify power supply requirements match the 3.3 V specification.
Part Context
This component belongs to the LFOCXO series of oven-controlled oscillators from IQD Frequency Products. These devices are designed to provide superior frequency stability compared to standard TCXOs by maintaining the crystal in a thermally controlled environment.
Replacement Considerations
Consult official manufacturer substitution guides for verified compatible replacements. Generic cross-references should be validated against electrical parameters and pinout compatibility.
