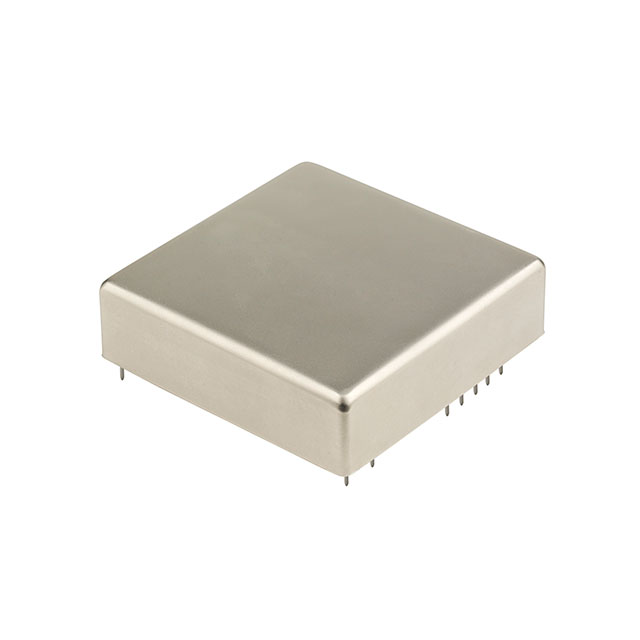

LFOCXO070939BULK

Description：XTAL OSC OCXO 10.0000MHZ HCMOS
Series：IQCM-200
Mfr：IQD Frequency Products
Package：Bulk

SKU:de626067f70c Category: Oscillators Brand: IQD Frequency Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XTAL OSC OCXO 10.0000MHZ HCMOS
Series：IQCM-200
Mfr：IQD Frequency Products
Package：Bulk
Base Resonator：Crystal
Type：OCXO (GPSDO)
Frequency：10 MHz
Function：-
Output：HCMOS
Voltage - Supply：5V
Frequency Stability：-
Absolute Pull Range (APR)：-
Operating Temperature：-10°C ~ 70°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：600mA
Ratings：-
Mounting Type：Through Hole
Package / Case：Module
Size / Dimension：2.008" L x 2.008" W (51.00mm x 51.00mm)
Height - Seated (Max)：0.532" (13.50mm)

Download product information

LFOCXO070939BULK

Overview

The LFOCXO070939BULK is a 10 MHz HCMOS Oven-Controlled Crystal Oscillator (OCXO) designed as a GPS Disciplined Oscillator (GPSDO). It operates on a 5V supply with a maximum current consumption of 600mA. The module features a frequency stability of 0.02 PPB and a load capacitance of 15 pF. Physical dimensions are 51.00mm x 51.00mm x 13.50mm. It supports through-hole installation and functions within an operating temperature range of -10°C to +70°C.

Feature Summary

Integrates GNSS discipline capability with synchronization to a 1pps input and output for high-precision timing applications.
Provides ultra-high frequency stability characteristic of oven-controlled crystal oscillator technology.
Delivers standard HCMOS logic output signals suitable for digital clock distribution systems.

Applications

GNSS disciplined timekeeping systems
Telecommunications base station synchronization
Precision test and measurement equipment

Procurement Notes

Verify the specific ordering suffix and packaging configuration against the manufacturer's latest documentation before procurement. Confirm that the required 1pps sync interface compatibility matches the target system design. Ensure thermal management solutions accommodate the specified power dissipation levels during operation.

Selection Notes

Select this component when extreme frequency stability and long-term aging performance are critical requirements. The integrated OCXO architecture provides superior phase noise characteristics compared to standard TCXOs or VCXOs. Consider the physical module size and through-hole mounting constraints during PCB layout planning.

Part Context

This part belongs to the IQCM-200 series from IQD Frequency Products, specializing in high-performance quartz oscillators. The product line targets applications requiring robust timing references in challenging environments. The bulk packaging indicates availability for manual or semi-automated assembly processes.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other IQD OCXO modules only if pinout and electrical specifications match exactly.
