Product Detailed Parameters
- Description：XTAL OSC TCXO 13.0000MHZ HCMOS

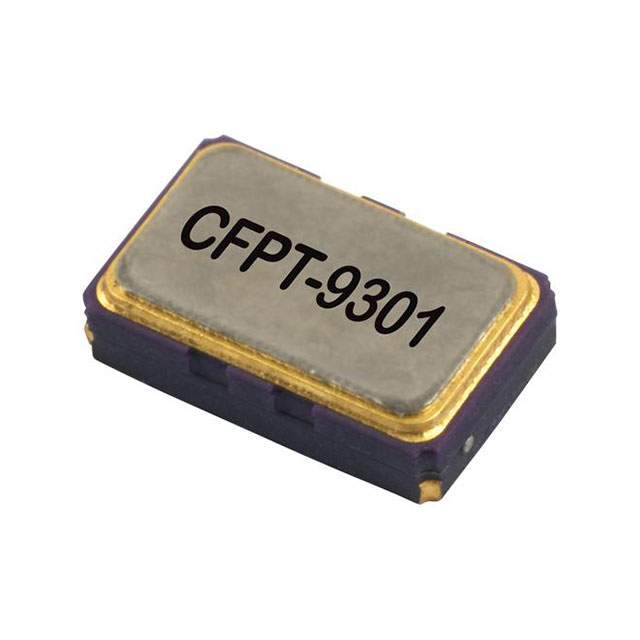

- Series：CFPT-9301
- Mfr：IQD Frequency Products
- Package：Strip
- Base Resonator：Crystal
- Type：TCXO
- Frequency：13 MHz
- Function：-
- Output：HCMOS
- Voltage - Supply：3.3V
- Frequency Stability：±1ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：3mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.067" (1.70mm)
Download product information
Overview
The LFPTXO000275BULK is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by IQD Frequency Products. It operates at a nominal frequency of 13 MHz with a stability of ±1 ppm. The device utilizes HCMOS output format and requires a 3.3 V supply voltage. Designed for surface mount applications, it features a 4-pin SMD package configuration. The component supports tri-state functionality and includes an enable/disable control function.
Feature Summary
- Integrated temperature compensation for high frequency stability
- HCMOS digital output interface
- Tri-state capability with enable/disable control
Applications
- Mobile communication devices
- Wireless networking equipment
- Portable electronic systems requiring precise timing
Procurement Notes
Verify the specific suffix and packaging configuration against official IQD documentation before ordering. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Ensure the 4-pin SMD footprint matches your PCB design constraints. Check for any lead time variations associated with controlled oscillator orders.
Selection Notes
Select this component when a 13 MHz reference signal with ±1 ppm stability is required in a compact form factor. The 3.3 V operating voltage suits modern low-power digital circuits. Consider the HCMOS output drive strength and the enable/disable feature for power management strategies in battery-operated designs.
Part Context
This part belongs to IQD's controlled oscillator portfolio, utilizing advanced compensation technology. It is designed for applications demanding reliable frequency performance across varying environmental conditions. The 4-pin SMD package allows for automated surface mount assembly, supporting high-volume manufacturing processes.
Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify pin compatibility and electrical specifications if considering alternative TCXO models from other manufacturers.
