LFRBXO059244BULK

Overview

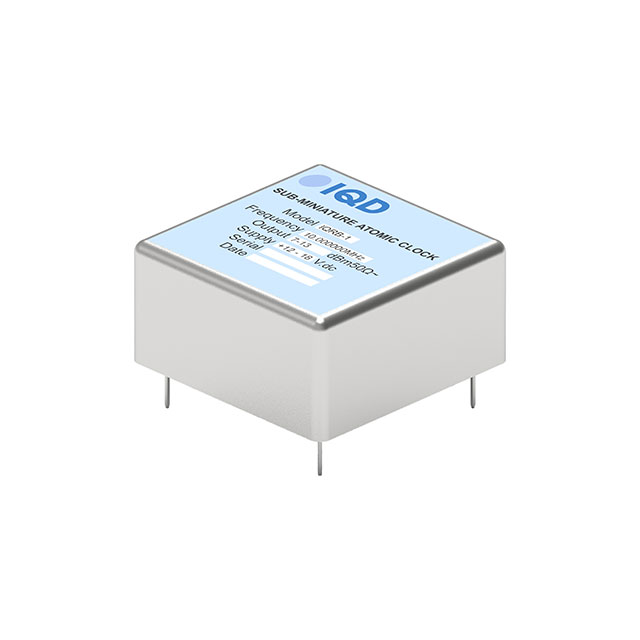

The LFRBXO059244BULK is a professional rubidium oscillator from the IQRB-1 series, functioning as an atomic clock with a nominal frequency of 10.0 MHz and sine wave output. It operates within a supply voltage range of 12 V to 18 V and supports a working temperature range of -30°C to +65°C. The component features through-hole installation in a bulk package, measuring 50.8 mm x 50.8 mm x 25 mm.

Feature Summary

• Utilizes an atomic-grade crystal resonator for high precision
• Provides exceptional frequency stability via precision temperature compensation
• Delivers sub-miniature performance in a standard OCXO style package

Applications

• Telecommunications infrastructure requiring precise timing
• Navigation and positioning systems
• Test and measurement equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required frequency tolerance and aging specifications. Confirm that the through-hole mounting style aligns with the target PCB design constraints before finalizing procurement orders.

Selection Notes

Select this model when application requirements demand atomic-level frequency stability and long-term reliability exceeding standard quartz oscillators. The 10 MHz sine wave output is suitable for applications requiring clean signal generation without additional filtering stages.

Part Context

This part belongs to the IQRB-1 series of rubidium oscillators manufactured by IQD Frequency Products. The series is designed to exhibit normal rubidium oscillator performance within a compact form factor comparable to traditional Oven-Controlled Crystal Oscillators (OCXOs).

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
