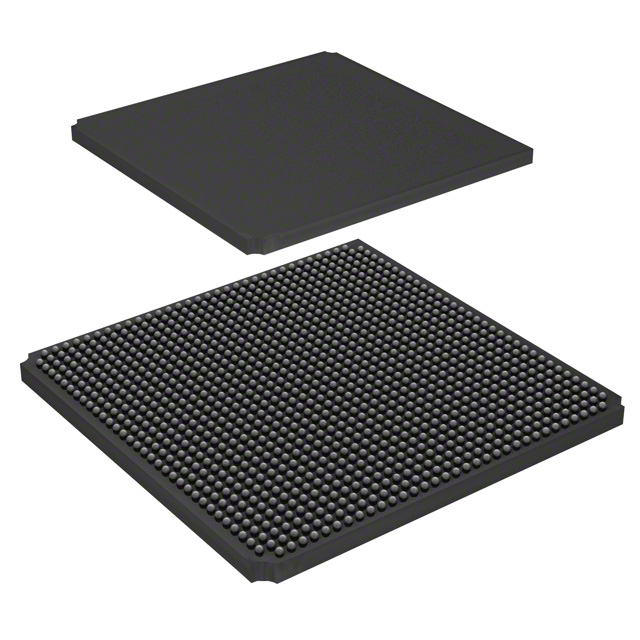

LFSCM3GA115EP1-5FFN1152C

Field Programmable Gate Array Overview

The LFSCM3GA115EP1-5FFN1152C is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor. It features 115.2K Look-Up Tables (LUTs) and supports up to 660 Input/Output (I/O) pins. The device integrates Multi-Gigabit Transceiver (MACO) Serializers/Deserializers (SERDES). It operates at a core voltage of 1.2V and utilizes a -5SP package variant. This component is designed for high-density logic applications requiring significant I/O flexibility and high-speed serial communication capabilities within the Lattice MachXO3L family architecture.

Field Programmable Gate Array Feature Summary

• High-density programmable logic with 115.2K LUT capacity
• Integrated MACO SERDES for high-speed serial data transmission
• Flexible I/O configuration supporting up to 660 user-accessible pins
• Optimized low-power operation with 1.2V core voltage

Field Programmable Gate Array Applications

• Industrial automation control systems
• Telecommunications infrastructure interfaces
• Test and measurement equipment signal processing
• Medical imaging system front-end logic

Field Programmable Gate Array Procurement Notes

Verify the exact suffix '5FFN1152C' against official Lattice documentation to confirm pin count, temperature range, and package type. Ensure compatibility with Lattice Diamond software versions supporting the MachXO3L family. Confirm RoHS compliance status through the manufacturer's current datasheet before procurement.

Field Programmable Gate Array Selection Notes

Select this model when design requirements exceed the capacity of smaller MachXO3L devices but do not necessitate the higher density of MachXO3T or MachXO3LF series. Evaluate the specific SERDES lane requirements against the integrated MACO blocks. Consider thermal management solutions suitable for the FCBGA package given the 1.2V core operation.

Field Programmable Gate Array Part Context

This part belongs to the Lattice MachXO3L series, which focuses on low-power, high-performance FPGA solutions. The MachXO3L family combines non-volatile Flash technology with high-speed SERDES capabilities, making it suitable for cost-sensitive applications requiring reprogrammability. It sits below the MachXO3T in terms of density but offers similar interface features.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package and density class should be verified via Lattice's cross-reference tools. Alternative models may include other MachXO3L variants with different I/O counts or speed grades. Upgrades to MachXO3T series are possible if higher logic density is required, subject to design migration efforts.
