LFSPXO009441BULK

Overview

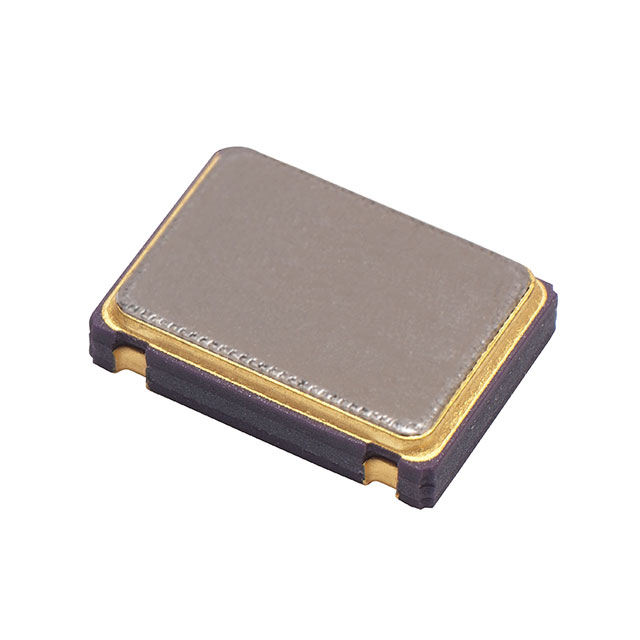

LFSPXO009441BULK is a quartz clock oscillator from the ASVTX-12 series by IQD Frequency Products. It operates at a frequency of 1.8V supply voltage and delivers a clipped sine wave output. The component features high frequency stability of ±0.5ppm, suitable for precision timing applications. It is housed in a surface-mount package with a maximum seated height specified in its datasheet. This model represents a specialized low-voltage oscillator solution within the manufacturer's portfolio.

Feature Summary

• Provides clipped sine wave output format
• Features ultra-high frequency stability of ±0.5ppm
• Operates on a 1.8V supply voltage

Applications

• Precision timing circuits requiring low jitter
• Low-voltage digital systems
• Communication equipment interfaces

Procurement Notes

Verify the specific package dimensions and pin configuration against the official LFSPXO009441BULK datasheet before integration. Confirm that the clipped sine wave output is compatible with downstream logic levels or requires additional buffering. Ensure the 1.8V supply rail meets the minimum operating requirements for stable oscillation. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when ultra-low phase noise and high stability are critical, rather than standard square wave outputs. The 1.8V operation makes it suitable for modern low-power portable devices. Consider the clipped sine wave output nature; if digital CMOS inputs are used directly, verify voltage thresholds. Compare against other IQD series like CFPS or IQXO if different output formats or temperature ranges are needed.

Part Context

The LFSPXO009441BULK belongs to the ASVTX-12 series, which focuses on high-performance, low-voltage oscillators. Unlike the more common HCMOS square wave oscillators in the CFPS or IQXO lines, this series provides a sinusoidal output. It is part of IQD's broader range of frequency control products, serving niche applications where signal integrity and low power consumption are prioritized over standard digital interface compatibility.

FAQ

What is the output waveform type for LFSPXO009441BULK?

The output waveform is a clipped sine wave.

What is the frequency stability specification?

The frequency stability is ±0.5ppm.
