LFSPXO024807

Overview

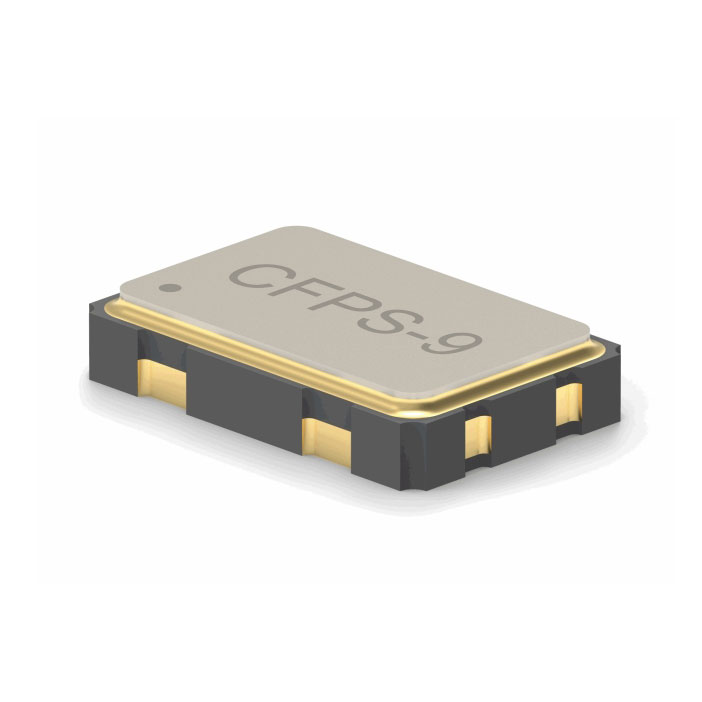

The LFSPXO024807 is a standard crystal clock oscillator from IQD Frequency Products, operating at a nominal frequency of 10 MHz. It features CMOS output format and supports a supply voltage range of 2.97 V to 3.63 V, with a typical operating voltage of 3.3 V. The device exhibits a frequency stability of ±50 ppm over the specified temperature range. It is housed in a compact 4-SMD, no-lead package measuring 5.2 mm x 3.4 mm x 1.3 mm. The component operates within a temperature range of -40°C to +85°C and includes standby functionality for power management.

Feature Summary

• CMOS output interface compatible with standard digital logic
• Integrated standby mode for reduced power consumption
• Compact surface-mount design for space-constrained applications

Applications

• General-purpose timing reference for embedded systems
• Clock source for microcontrollers and processors
• Data communication equipment requiring stable frequency generation

Procurement Notes

Verify the specific package variant and tolerance requirements against the official datasheet before ordering. Confirm that the 10 MHz frequency and ±50 ppm stability meet the system timing specifications. Ensure the 3.3 V supply voltage aligns with the target circuit design. Check for any recent part number revisions or alternate packaging options such as bulk or tape-and-reel configurations directly from the manufacturer.

Selection Notes

Select this component when a 10 MHz clock signal with moderate stability is required. The CMOS output simplifies interfacing with standard logic families. Consider the -40°C to +85°C industrial temperature range for robustness. The small footprint allows for high-density PCB layouts. Evaluate power consumption needs if continuous operation is critical, noting the available standby feature.

Part Context

This oscillator belongs to the LFSPXO series of standard crystal oscillators from IQD Frequency Products. The series offers various frequencies and packages to suit different application needs. The LFSPXO024807 specifically targets applications requiring a reliable 10 MHz reference in a small form factor. It complements other IQD products like crystals and higher-stability oscillators in comprehensive timing solutions.

Replacement Considerations

Check for direct substitutes within the LFSPXO series offering identical 10 MHz frequency and similar package dimensions. Verify compatibility of output drive strength and supply voltage requirements. Consult manufacturer documentation for any updated part numbers replacing this specific model.
