LFSPXO025365BULK

Overview

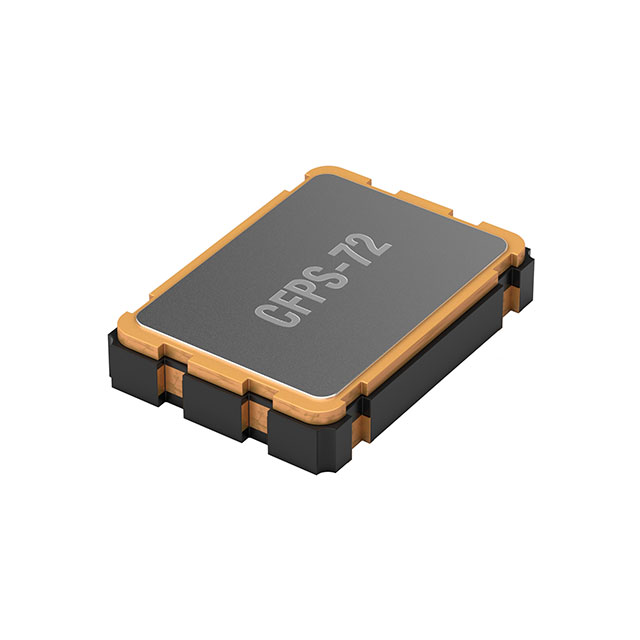

The LFSPXO025365BULK is a standard clock oscillator from the IQD Frequency Products LFSPXO series. It operates at a frequency of 100 MHz with a frequency stability of ±25 ppm. The device requires a supply voltage of 5 V and features an HCMOS output format. It is housed in a surface-mount package measuring 7 mm x 5 mm. The component supports a wide operating temperature range from -40°C to +85°C.

Feature Summary

• Generates a precise 100 MHz clock signal for digital systems
• Provides stable timing performance within ±25 ppm over the operating temperature range
• Utilizes a compact 7 mm x 5 mm surface-mount footprint for PCB integration

Applications

• High-speed data communication interfaces requiring precise clocking
• Digital signal processing circuits needing stable timing references
• Embedded systems utilizing high-frequency microcontrollers or processors

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm the exact electrical characteristics, as variations may exist within the LFSPXO product line. Ensure that the 5V supply requirement aligns with the target system's power rails before procurement. Confirm availability status directly with authorized distributors, as lead times and stock levels are subject to change.

Selection Notes

Select this component when a 100 MHz frequency is required with ±25 ppm stability and a 5V operating voltage. The HCMOS output format is suitable for direct interfacing with standard logic families. Consider the 7x5mm package size for board space constraints. Verify that the -40°C to +85C temperature range meets the environmental requirements of the intended application.

Part Context

This oscillator belongs to the LFSPXO series by IQD Frequency Products, designed for general-purpose clock generation. The series offers various frequencies and packages to support diverse electronic designs. The LFSPXO025365BULK specifically addresses applications needing a 100 MHz reference with moderate stability in a standard SMD form factor.

Replacement Considerations

Consult official cross-reference lists for compatible alternatives. Ensure any substitute matches the 100 MHz frequency, 5V supply, HCMOS output, and 7x5mm package dimensions. Verify that the replacement maintains equivalent frequency stability and temperature range specifications.
