LFSPXO051652REEL

Overview

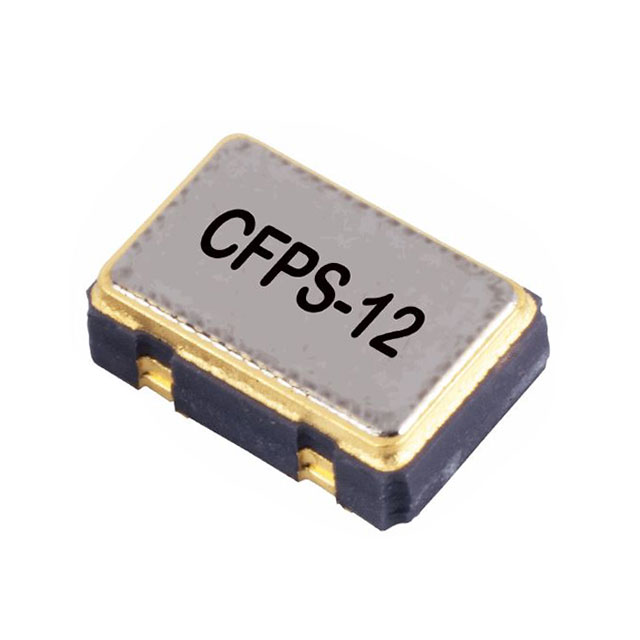

The LFSPXO051652REEL is a standard clock oscillator manufactured by IQD Frequency Products, operating at a frequency of 16 MHz. It features CMOS output format and operates within a supply voltage range of 3.0 V to 3.6 V, with a typical operating voltage of 3.3 V. The device exhibits a frequency stability of ±50 ppm and supports a load capacitance of 15 pF. It is housed in a compact 4-SMD, no-lead package measuring 5.00 mm x 3.20 mm x 1.30 mm. The component is rated for an operating temperature range of -40°C to +85°C and draws a maximum supply current of 45 mA.

Feature Summary

• Provides stable 16 MHz timing signals via CMOS output interface
• Compact surface-mount design suitable for space-constrained PCB layouts
• Operates reliably across extended industrial temperature ranges

Applications

• General-purpose digital circuit clocking
• Microcontroller system timing references
• Embedded computing modules

Procurement Notes

Verify the obsolete status of this specific reel variant against current manufacturer catalogs. Confirm that the lead-free RoHS compliance meets project requirements. Ensure the 4-SMD footprint matches the target PCB design. Check for available alternative part numbers if production continuity is required.

Selection Notes

Select this component when a 16 MHz CMOS clock source is required in a small form factor. Consider the 45 mA current consumption relative to power budgets. Verify compatibility with 3.3 V logic levels. Evaluate the ±50 ppm stability against system jitter requirements.

Part Context

This part belongs to the LFSPXO series of standard crystal oscillators from IQD Frequency Products. These devices are designed for general timing applications requiring reliable frequency generation. The REEL suffix indicates tape-and-reel packaging for automated assembly processes.

Replacement Considerations

The datasheet identifies the part number alias 830205165202. Verify cross-compatibility with other 16 MHz CMOS oscillators in 4-SMD packages if this obsolete unit is unavailable.
