LFSPXO056168

Overview

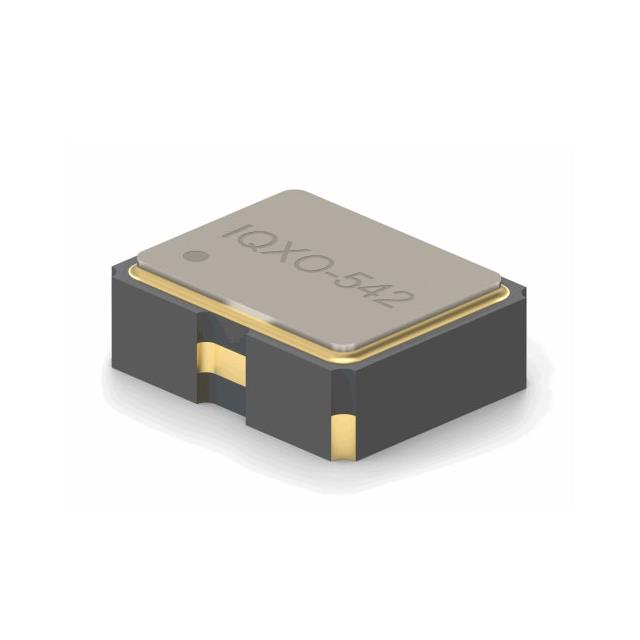

The LFSPXO056168 is a standard clock oscillator from the IQD Frequency Products IQXC-542 series. It operates at a nominal frequency of 12 MHz with a CMOS output format. The device features a frequency stability of ±50 ppm and functions within an operating temperature range of -40°C to +85°C. It requires a supply voltage of 1.8V and includes an enable/disable function for power management. The component is housed in a compact 2mm x 1.6mm surface-mount package.

Feature Summary

• CMOS output signal generation
• Integrated enable and disable control functionality
• Extended industrial temperature range operation

Applications

• Portable electronic devices requiring low power consumption
• Industrial control systems
• Communication equipment
• Computing hardware timing circuits

Procurement Notes

Verify the specific frequency tolerance and package dimensions against the official datasheet before integration. Confirm that the 1.8V supply requirement aligns with the target system's power architecture. Ensure the CMOS output voltage levels are compatible with downstream logic inputs. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a small form factor and low supply voltage are critical constraints. The ±50 ppm stability is suitable for general timing applications but may require tighter tolerances for high-precision synchronization tasks. Consider the enable pin utility for battery-powered designs where power conservation during idle states is necessary.

Part Context

This part belongs to the IQXC-542 series, designed for space-constrained applications. IQD Frequency Products specializes in quartz crystals and oscillators, serving sectors such as aerospace, medical, and consumer electronics. The company emphasizes reliability and precision timing solutions across various environmental conditions.

Replacement Considerations

The LFSPXO056168 is functionally similar to other 12 MHz CMOS oscillators in the 2x1.6mm package. Verify pinout compatibility and electrical parameters when substituting with parts from other manufacturers or different IQD series variants.
