LFSPXO056267

Overview

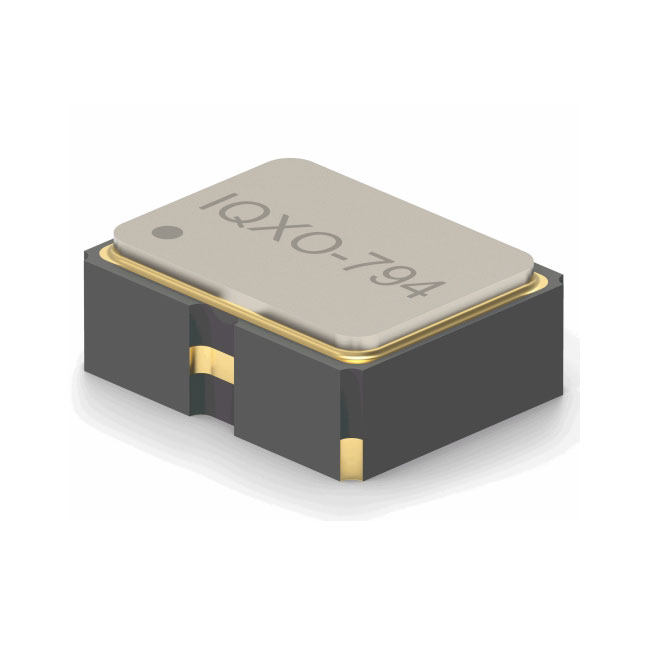

The LFSPXO056267 is a standard clock oscillator from the IQXO-794 series manufactured by IQD Frequency Products. It operates at a nominal frequency of 24 MHz with a frequency stability of ±50 ppm. The device utilizes HCMOS output format and requires a supply voltage range of 1.71 V to 1.89 V, with a nominal operating voltage of 1.8 V. It features a maximum current draw of 10 mA and supports a drive capability of 15 pF. The component has rise and fall times of 10 ns max and maintains a 40/60% duty cycle. It functions within an operating temperature range of -40°C to +85°C and exhibits a maximum aging rate of ±3 ppm per year. The physical dimensions are 2.5 mm x 2.0 mm x 1.0 mm in a ceramic package with a hermetically sealed metal lid.

Feature Summary

• Hermetically sealed ceramic package with metal lid for environmental protection
• HCMOS output interface compatible with standard logic families
• Low power consumption with 10 mA typical current draw
• Compact surface mount footprint suitable for space-constrained designs

Applications

• General purpose clock generation in embedded systems
• Timing reference for microcontrollers and digital signal processors
• Communication equipment requiring stable frequency sources
• Industrial control systems operating in wide temperature ranges

Procurement Notes

Verify the specific ordering suffix and packaging configuration when sourcing this component. Confirm that the requested variant matches the required voltage and frequency specifications. Ensure compliance with RoHS directives if applicable to your manufacturing process. Check availability through authorized distributors or direct manufacturer channels. Validate the part number against the official IQD Frequency Products catalog to avoid substitution errors.

Selection Notes

Select this oscillator when a 24 MHz HCMOS clock signal is required at 1.8 V. Consider the ±50 ppm stability sufficient for most digital timing applications. Evaluate the 2.5 x 2.0 mm package size against board space constraints. Verify thermal requirements against the -40°C to +85°C operational range. Compare aging rates and drive capabilities against system load requirements before finalizing the design.

Part Context

This component belongs to the IQXO-794 series of crystal clock oscillators. The series offers various frequencies and voltages in a small ceramic package. It is designed for applications needing reliable timing in compact form factors. The hermetic sealing provides durability in harsh environments. IQD Frequency Products manufactures this line for industrial and commercial use.

FAQ

What is the output logic family of the LFSPXO056267?

The LFSPXO056267 uses HCMOS output format.

What is the maximum aging specification for this oscillator?

The maximum aging rate is ±3 ppm per year over the operating temperature range.
