LFSPXO056301

Overview

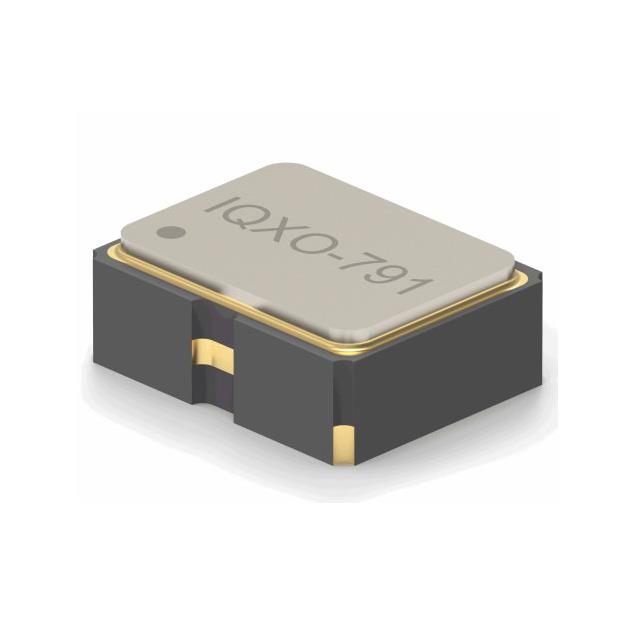

The LFSPXO056301 is a standard clock oscillator from the IQXO-791 series by IQD Frequency Products. It operates at a nominal frequency of 50 MHz with a frequency stability of 50 PPM. The device utilizes HCMOS output format and requires a supply voltage of 3.3 V. It features an enable/disable function and is housed in a compact 4-SMD, No Lead package measuring 2.5 mm x 2 mm.

Feature Summary

• Compact surface-mount design suitable for space-constrained applications
• Integrated enable and disable functionality for power management
• HCMOS output signal compatibility

Applications

• Data conversion development kits
• Signal conditioning systems
• General timing reference circuits

Procurement Notes

Verify the specific package variant and electrical parameters against the official manufacturer datasheet before integration. Confirm that the 3.3V supply requirement and HCMOS logic levels align with the target system design constraints to ensure proper operation.

Selection Notes

Select this component when a 50 MHz reference with 50 PPM stability is required in a small footprint. Consider the 3.3V operating voltage and the availability of the enable pin for system-level power control strategies during the design phase.

Part Context

This oscillator belongs to the IQXO-791 series, which provides standard clock signals in miniature packages. IQD Frequency Products supplies these components for various commercial and industrial timing needs, supporting global distribution through authorized partners.

Replacement Considerations

Check for direct substitutes within the IQXO-791 series or other IQD standard oscillators offering identical 50 MHz frequency, 50 PPM stability, and compatible 2.5mm x 2mm SMD packaging.
