Product Detailed Parameters
- Description：XTAL OSC XO 8.0000MHZ CMOS SMD
- Series：IQXO-540 AUTO
- Mfr：IQD Frequency Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：8 MHz
- Function：Enable/Disable
- Output：CMOS
- Voltage - Supply：3.3V
- Frequency Stability：±100ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 125°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：5mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max)：0.031" (0.80mm)
Download product information
Overview

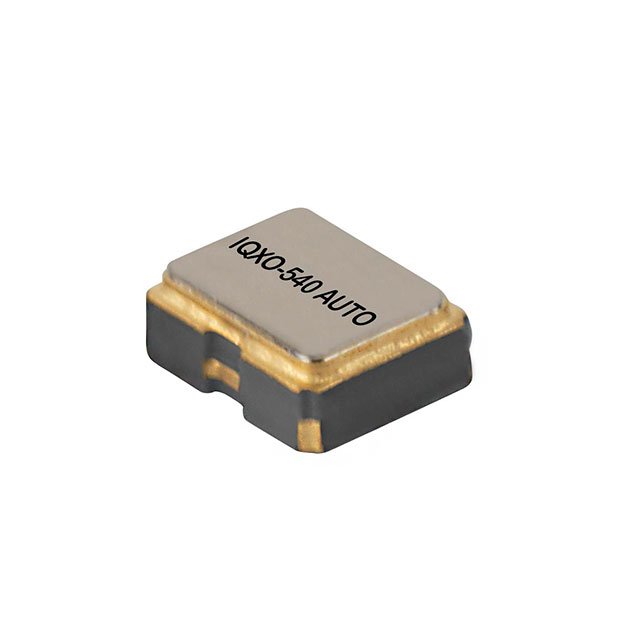

The LFSPXO071189 is a standard clock oscillator from the IQXO-540 series manufactured by IQD Frequency Products. It operates at a nominal frequency of 8 MHz with a frequency tolerance of ±100 ppm. The device utilizes CMOS output format and requires a single 3.3 V supply voltage. It is housed in a compact 2.0 mm x 1.6 mm surface-mount package. The component is AEC-Q200 qualified, ensuring reliability for automotive applications.
Feature Summary
- AEC-Q200 qualified for automotive environment reliability
- Compact 2.0mm x 1.6mm SMD footprint
- CMOS output logic interface
Applications
- Automotive electronic systems
- General-purpose digital timing circuits
- Embedded microcontroller clock sources
Procurement Notes
Verify the specific suffix against the official datasheet to confirm exact electrical tolerances and packaging options. Confirm current availability status as components may be subject to lifecycle changes. Ensure the selected variant matches the required operating temperature range and supply voltage specifications for the target design.
Selection Notes
Select this model when a small form factor is required alongside automotive qualification standards. The 3.3V CMOS output is suitable for direct interfacing with modern digital logic families. Consider the ±100 ppm stability limit against system jitter requirements before finalizing the design.
Part Context
This part belongs to the IQXO-540 series of standard oscillators. The series provides various frequencies and packages tailored for space-constrained designs. The LFSPXO071189 specifically addresses the need for automotive-grade timing solutions in miniature packages.
Replacement Considerations
Cross-reference with other AEC-Q200 qualified 8MHz oscillators in 2x1.6mm packages. Verify pin compatibility and electrical parameter equivalence before substitution.
FAQ
What is the output logic type?
The LFSPXO071189 features a CMOS output format.
Is this component suitable for automotive use?
Yes, it is AEC-Q200 qualified for automotive applications.
