LFSPXO073700

Overview

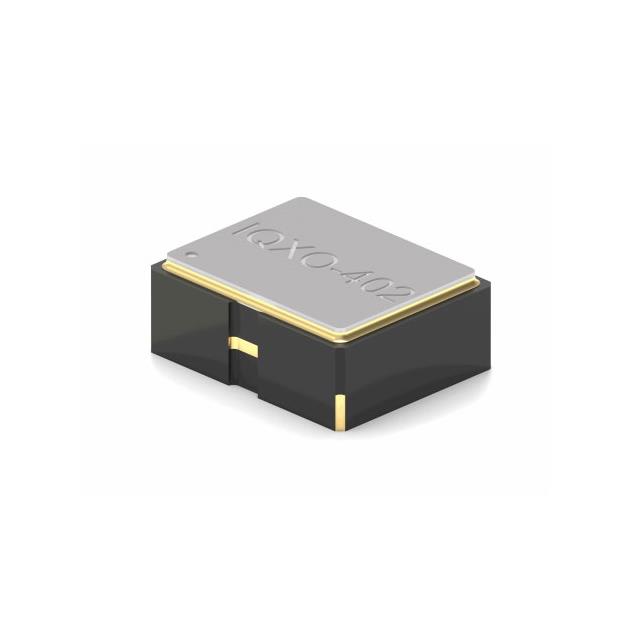

The LFSPXO073700 is a standard clock oscillator from the IQXO-402 series, manufactured by IQD Frequency Products. It operates at a frequency of 32.768 kHz with a stability of 30 ppm. The device supports a supply voltage range of 2.97 V to 3.63 V, typically powered at 3.3 V, and features CMOS output format. It is housed in a compact 2 mm x 1.6 mm SMD package with a height of 0.8 mm. The component functions within an operating temperature range of -40°C to +85°C and includes enable/disable functionality.

Feature Summary

• Integrated CMOS output stage for direct logic interfacing
• Compact surface-mount footprint suitable for space-constrained designs
• Low power consumption profile optimized for battery-operated systems
• Enable/Disable control capability for power management

Applications

• Real-time clock circuits in portable electronics
• Microcontroller system timing references
• Battery-powered IoT sensor nodes
• Consumer device synchronization

Procurement Notes

Verify the specific suffix and packaging configuration against the manufacturer's latest documentation before ordering. Confirm that the required frequency tolerance and temperature range align with the design specifications. Ensure compatibility with the target PCB footprint dimensions. Check for any recent part number revisions or obsolescence notices from IQD Frequency Products to avoid sourcing delays.

Selection Notes

Select this component when a precise 32.768 kHz reference is required for low-power applications. Consider the 30 ppm stability requirement against the environmental temperature variations expected in the final product. Evaluate the 3.3 V supply constraint relative to the system power rails. The small 2x1.6 mm package size should be weighed against available board space and assembly capabilities.

Part Context

This oscillator belongs to the IQXO-402 series, designed for general-purpose timing applications. It represents a solution for replacing discrete crystal resonators with integrated oscillator modules. The series targets markets requiring reliable timekeeping with minimal component count and reduced assembly complexity compared to traditional crystal-based solutions.

Replacement Considerations

No public confirmed substitute part numbers are documented in the provided source material.
