LFSPXO076023

Overview

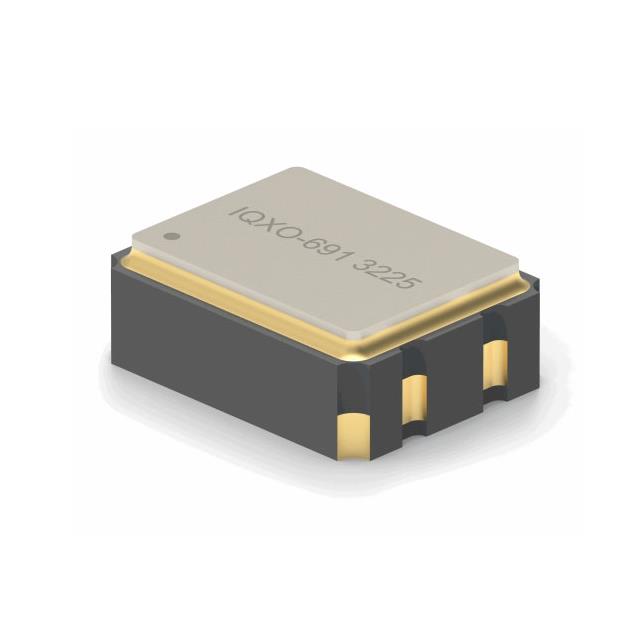

The LFSPXO076023 is a standard clock oscillator from the IQXO-691 series, manufactured by IQD Frequency Products. It operates at a nominal frequency of 24 MHz with a frequency stability of ±50 ppm. The device utilizes CMOS output format and functions within a supply voltage range of 0.9 V to 1.2 V. It supports an enable/disable control function and is housed in a compact 3.2 mm x 2.5 mm surface-mount package. The component is rated for operation across a temperature range of -40°C to +85°C.

Feature Summary

• Integrated enable and disable functionality for power management
• Compact 3.2 mm x 2.5 mm SMD package design
• CMOS output signal format

Applications

• General purpose clock generation
• Embedded system timing references
• Portable electronic devices requiring low voltage operation

Procurement Notes

Verify the specific supply voltage requirement (0.9V or 1.2V) against the target circuit design, as the series supports multiple voltage options. Confirm that the CMOS output logic levels are compatible with the receiving input pins. Ensure the operating temperature range meets the environmental specifications of the final application. Cross-reference the package dimensions with the PCB footprint to guarantee mechanical fit.

Selection Notes

Select this component when a small form factor is required alongside precise timing stability. The ±50 ppm stability suits most digital communication interfaces. Consider the enable pin feature if dynamic power saving is necessary. Verify that the 24 MHz frequency aligns with the system clock requirements. Ensure the available supply voltage matches the selected variant's specification.

Part Context

This part belongs to the IQXO-691 family of standard quartz oscillators. The series is characterized by its small physical size and low power consumption. It provides a stable clock source for microcontrollers and memory devices. The manufacturer offers various frequency and voltage combinations within this standardized package outline.

Replacement Considerations

Check for direct substitutes within the same IQXO-691 series offering identical 24 MHz frequency and CMOS output. Verify that any alternative maintains the 3.2mm x 2.5mm footprint and ±50 ppm stability. Ensure the replacement supports the required enable/disable control feature.
