LFSPXO076032

Overview

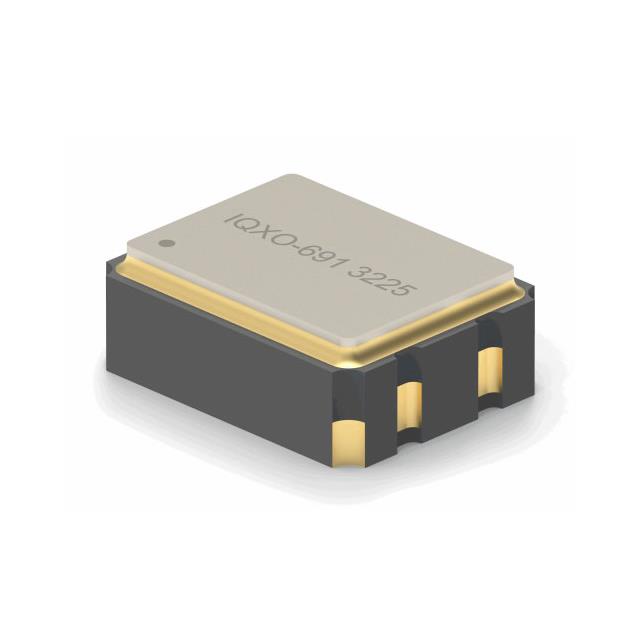

The LFSPXO076032 is a standard clock oscillator from the IQXO-691 series by IQD Frequency Products. It operates at a nominal frequency of 40 MHz with a frequency stability of +/-50 ppm. The device supports a supply voltage of 0.9 V and features a CMOS output format. It is housed in a compact 3.2 mm x 2.5 mm surface-mount package. The component is designed for industrial applications, supporting an operating temperature range from -40°C to +85°C.

Feature Summary

• Compact 3.2mm x 2.5mm SMD footprint for space-constrained designs
• Low voltage operation at 0.9V for energy efficiency
• CMOS output interface compatible with digital logic circuits

Applications

• Industrial control systems requiring precise timing
• Embedded devices with low power constraints
• Data communication interfaces needing stable clock signals

Procurement Notes

Verify the specific ordering suffix and packaging configuration (e.g., reel or cut tape) against the manufacturer's current datasheet before purchase. Confirm that the 0.9V supply requirement aligns with the target system's power rails. Ensure the 40MHz frequency and 50ppm stability meet the design specifications. Check for any recent part number revisions or lifecycle status updates directly from IQD Frequency Products documentation.

Selection Notes

Select this oscillator when a small form factor and low voltage operation are critical. The 0.9V supply makes it suitable for battery-powered or low-voltage logic domains. The 40MHz frequency is common for microcontroller clocks and serial interfaces. Consider the +/-50ppm stability for general-purpose timing where high precision is not required. The CMOS output simplifies integration with standard digital inputs.

Part Context

This component belongs to the IQXO-691 series of standard oscillators from IQD Frequency Products. The series offers various frequencies and voltages in a consistent 3.2mm x 2.5mm package. It complements other IQD timing solutions like crystals and TCXOs, providing a ready-to-use clock source for embedded systems without external tuning components.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
