LFSPXO076033

Overview

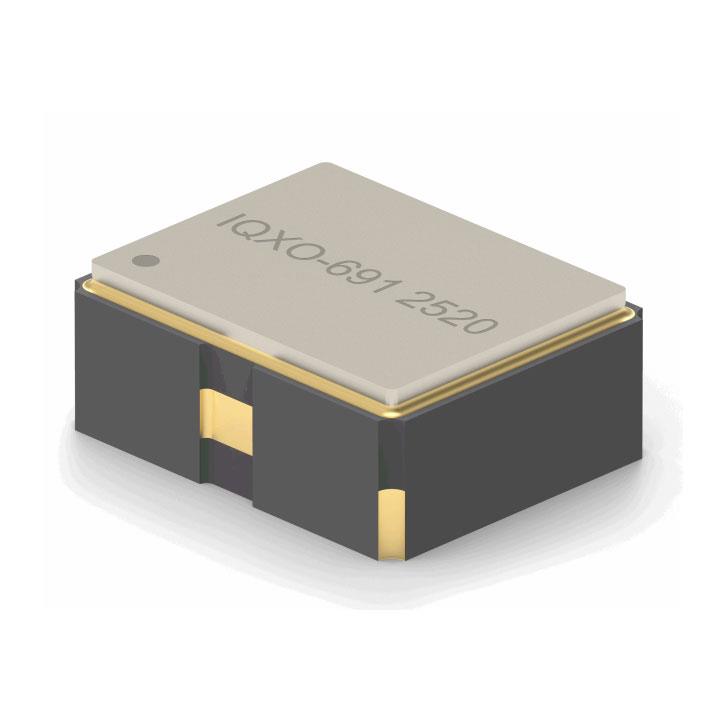

The LFSPXO076033 is a standard CMOS clock oscillator from the IQXO-691 series by IQD Frequency Products. It operates at a nominal frequency of 24 MHz with a stability of ±50 ppm. The device functions on a single 1.2 V supply and features an enable/disable control input. Packaged in a compact 2.5 mm x 2 mm SMD footprint, it supports surface-mount assembly. The component is rated for operation across a temperature range of -40°C to +85°C, making it suitable for various electronic applications requiring precise timing signals.

Feature Summary

• Integrated enable and disable functionality for power management
• CMOS output format compatible with digital logic circuits
• Compact 2.5 mm x 2 mm surface-mount package design

Applications

• Embedded system clock generation
• Microcontroller timing sources
• Portable electronic devices

Procurement Notes

Verify the specific ordering suffix and reel quantity requirements directly with the manufacturer or authorized distributors. Confirm that the 1.2V supply voltage and enable pin configuration match the target circuit design. Ensure compatibility with the specified operating temperature range and package dimensions during the procurement process.

Selection Notes

Select this component when a low-voltage 1.2V operation is required alongside precise 24 MHz timing. The ±50 ppm stability suits general-purpose digital applications. Consider the enable/disable feature if power conservation is necessary. Verify that the 2.5mm x 2mm footprint fits the PCB layout constraints.

Part Context

This part belongs to the IQXO-691 series of standard oscillators. It shares the same physical dimensions and basic electrical characteristics as related models like the LFSPXO076034, differing primarily in nominal frequency specifications. The series provides a standardized solution for compact timing needs.

Replacement Considerations

The LFSPXO076034 serves as a functional substitute within the same series, offering identical package dimensions and voltage levels but operating at 25 MHz instead of 24 MHz. Ensure the frequency difference is acceptable for the application before substitution.
