LFSPXO083832

Overview

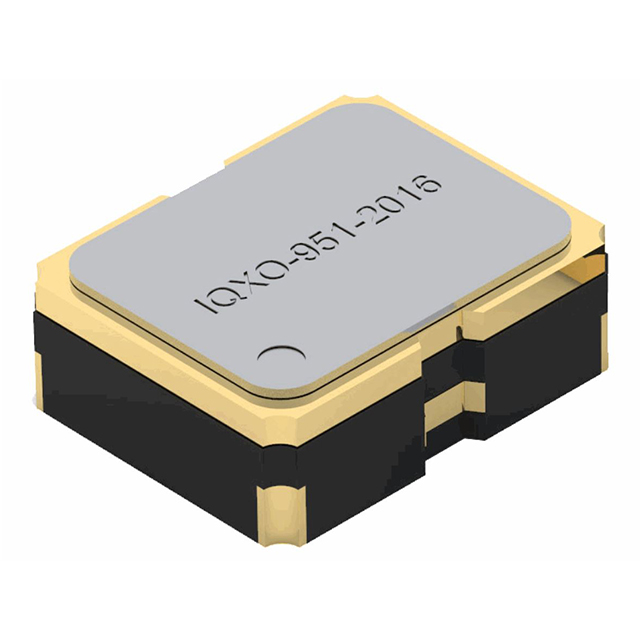

The LFSPXO083832 is a standard clock oscillator from the IQXO-951 series manufactured by IQD Frequency Products. It operates at a nominal frequency of 25 MHz with a CMOS output format. The device supports a supply voltage range of 1.62 V to 3.63 V and features a frequency stability of +/-25 ppm. It is designed for operation across an extended temperature range from -40 °C to +85 °C. The component utilizes a surface-mount package with dimensions of 2.0 mm x 1.6 mm x 0.95 mm.

Feature Summary

• CMOS output interface
• Extended industrial temperature range
• Low voltage operation capability

Applications

• General purpose clock generation
• Embedded system timing
• Consumer electronics

Procurement Notes

Verify the specific part number against official IQD Frequency Products documentation to confirm current availability and manufacturing status. Ensure that the required operating parameters, including frequency tolerance and supply voltage, align with the design specifications before procurement. Cross-reference datasheets for any updates regarding pinout or electrical characteristics.

Selection Notes

Select this component when a compact standard oscillator with CMOS outputs is required for low-voltage applications. Consider the +/-25 ppm stability and wide temperature range for environments requiring reliable timing without active compensation. Evaluate the small footprint suitability against board space constraints.

Part Context

This model belongs to the IQXO-951 series of standard crystal oscillators. The series provides various frequencies and packages tailored for space-constrained designs. The LFSPXO083832 specifically addresses needs for 25 MHz timing in portable or industrial devices where size and power efficiency are critical factors.

Replacement Considerations

Consult official substitution guides for equivalent oscillators with matching frequency, package, and electrical specifications.
