LFSPXO084267

Overview

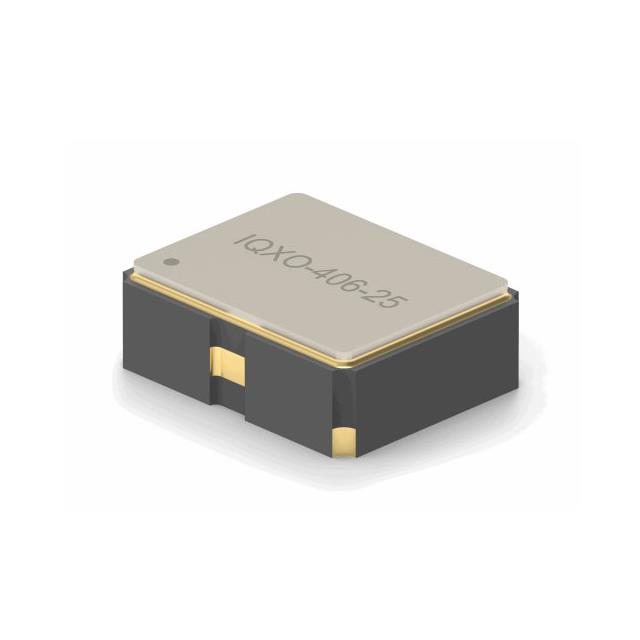

The LFSPXO084267 is a standard crystal oscillator manufactured by IQD Frequency Products. It operates at a frequency of 200 MHz and utilizes an LVDS output format. The device is designed for surface mount technology in a compact 4-SMD, No Lead package. It functions with a supply voltage of 2.5 V. This component provides stable signal processing suitable for high-speed digital applications.

Feature Summary

• Generates a precise 200 MHz clock signal using LVDS output format
• Designed for surface mount integration in compact electronic assemblies
• Operates on a 2.5 V power supply for efficient energy usage

Applications

• Networking system clock generation
• High-speed data transmission interfaces
• Digital signal processing circuits

Procurement Notes

Verify the specific package dimensions and pin configuration against the official datasheet before integration. Ensure the 2.5 V supply requirement aligns with the target circuit design. Confirm that the LVDS output compatibility matches the receiving logic inputs to prevent signal integrity issues during implementation.

Selection Notes

Select this model when a 200 MHz clock source with LVDS signaling is required. Consider the 4-SMD no-lead package for space-constrained designs. Evaluate the 2.5 V operating voltage against available power rails. Compare performance requirements against other IQD oscillators if different frequencies or output formats are needed.

Part Context

This component belongs to the IQD Frequency Products standard oscillator lineup. It represents a specialized solution for high-frequency timing needs within the broader portfolio of quartz crystals and oscillators. The product supports modern electronics requiring precise synchronization and low jitter performance in dense circuit layouts.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical parameters such as frequency tolerance and output drive strength before swapping components. Ensure mechanical footprint compatibility to avoid PCB redesign requirements during replacement processes.
