LFTCXO070036REEL

Overview

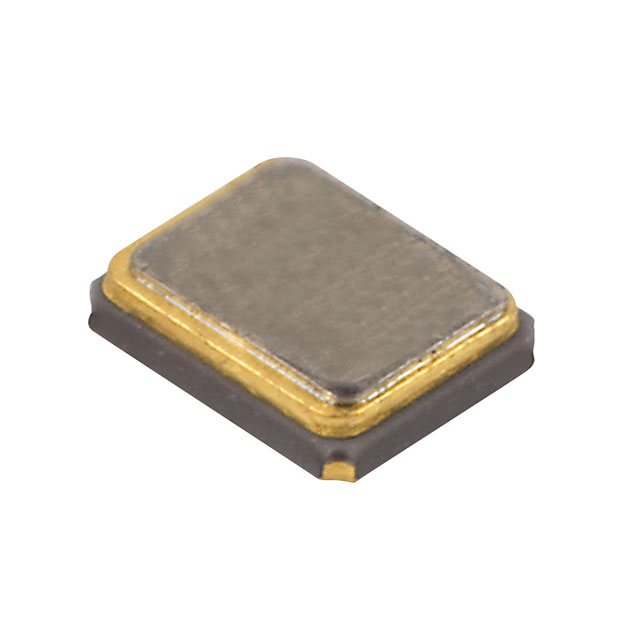

The LFTCXO070036REEL is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by IQD Frequency Products. It operates at a nominal frequency of 16.369 MHz with a clipped sine wave output format. The device requires a supply voltage of 1.8 V and features an SMD/SMT surface mount package in a 4-SMD, No Lead configuration. It is designed for operation within a temperature range of -30°C to +85°C.

Feature Summary

• Integrated temperature compensation circuitry ensures stable frequency performance across the specified operating temperature range.
• Compact surface-mount footprint facilitates automated assembly and integration into space-constrained electronic designs.

Applications

• Mobile communication devices requiring precise clock signals
• Portable consumer electronics utilizing low-voltage power supplies
• Industrial control systems operating in variable thermal environments

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot traceability requirements prior to procurement. Ensure storage conditions align with manufacturer guidelines to maintain component integrity before soldering.

Selection Notes

Select this component when a 16.369 MHz reference signal with clipped sine wave output is required. Consider the 1.8 V supply constraint and -30°C to +85°C operational range during design phase. Evaluate mechanical dimensions against PCB layout constraints to ensure proper fitment.

Part Context

This oscillator belongs to the LFTCXO series from IQD Frequency Products, which specializes in compact quartz-based timing solutions. The series targets applications demanding high stability in small form factors. It complements other IQD offerings like standard oscillators and crystals for complete timing system architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Designers should consult official manufacturer resources for potential cross-reference options or updated product line replacements.
