Product Detailed Parameters
- Description：XTAL OSC TCXO 26.0000MHZ SNWV SM
- Series：IQXT-270-6
- Mfr：IQD Frequency Products
- Package：Tape & Reel (TR)
- Base Resonator：Crystal
- Type：TCXO
- Frequency：26 MHz
- Function：-
- Output：Clipped Sine Wave
- Voltage - Supply：1.8V
- Frequency Stability：±500ppb
- Absolute Pull Range (APR)：-
- Operating Temperature：-30°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：1.5mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.081" L x 0.065" W (2.05mm x 1.65mm)
- Height - Seated (Max)：0.031" (0.80mm)
- Supplier Device Package：-
Download product information
Overview

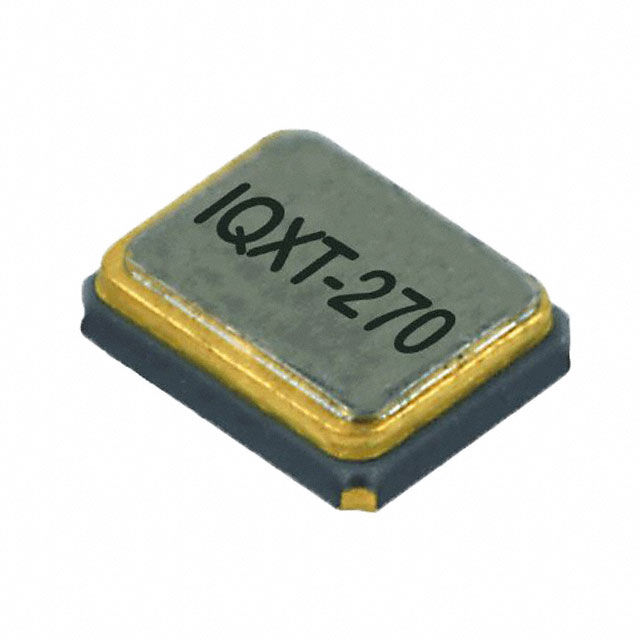

The LFTCXO070163REEL is a Temperature Compensated Crystal Oscillator (TCXO) from the IQXT-260 series by IQD Frequency Products. It operates at a nominal frequency of 26 MHz with a frequency stability of 0.5 PPM. The device utilizes a clipped sine wave output format and requires a supply voltage of 1.8 V. It features an SMD/SMT package with dimensions of 2.05 mm in length, 2.5 mm in width, and 0.8 mm in height. The component supports a load capacitance of 10 pF and functions within an operating temperature range of -30°C to +85°C.
Feature Summary
- Provides precise timing performance through temperature compensation technology ensuring stable frequency output across varying thermal conditions.
- Designed for low-power applications with a 1.8V supply requirement and compact surface-mount footprint suitable for space-constrained designs.
Applications
- Mobile communication devices requiring stable clock signals
- Wireless networking equipment
- Portable electronic instruments
Procurement Notes
Verify current availability status as the component may be subject to limited supply or discontinuation notices. Confirm that the specific reel packaging matches production requirements. Ensure compatibility with existing design specifications regarding voltage levels and output formats before finalizing procurement decisions.
Selection Notes
Select this TCXO when high frequency stability of 0.5 PPM is required alongside low power consumption constraints. The 1.8V supply voltage makes it suitable for battery-operated systems. Consider the clipped sine wave output interface for direct coupling to compatible receiver stages without additional buffering.
Part Context
This oscillator belongs to the IQXT-260 series, which offers miniature form factors for IoT and wearable applications. IQD Frequency Products specializes in quartz crystals and oscillators, providing solutions for various industrial and consumer electronics markets with a focus on reliability and size reduction.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential obsolescence management or alternative series recommendations if this specific model becomes unavailable.
