Product Detailed Parameters
- Description：XTAL OSC TCXO 10.0000MHZ SNWV
- Series：IQXT-220-1
- Mfr：IQD Frequency Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Base Resonator：Crystal
- Type：TCXO
- Frequency：10 MHz
- Function：-
- Output：Clipped Sine Wave
- Voltage - Supply：3.3V
- Frequency Stability：±280ppb
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：5mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Supplier Device Package：-
Download product information
Overview

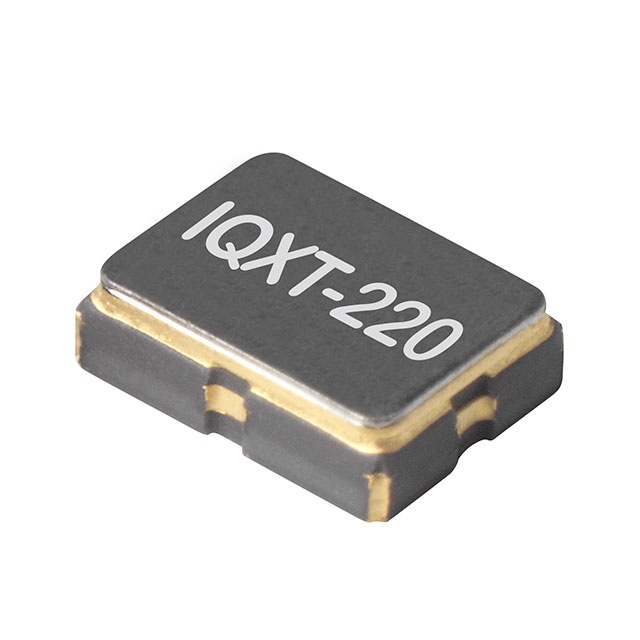

The LFTCXO075792 is a temperature-compensated crystal oscillator (TCXO) from the IQXT-220-1 series by IQD Frequency Products. It operates at a nominal frequency of 10 MHz with a stability of 0.28 ppm. The device utilizes a clipped sine wave output format and requires a supply voltage of 3.3 V. It features an SMD package measuring 3.2 mm x 2.5 mm, suitable for surface mount applications.
Feature Summary
- Temperature compensation ensures high frequency stability across operating ranges.
- Compact surface-mount design facilitates integration in space-constrained circuits.
- Clipped sine wave output provides a defined signal waveform for downstream processing.
Applications
- Precision timing systems requiring stable clock references
- Telecommunications equipment needing reliable frequency sources
- Test and measurement instruments demanding low drift performance
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received part matches the specific IQXT-220-1 series designation and packaging details. Check for any recent product change notifications or revision updates issued by IQD Frequency Products to ensure compatibility with existing designs.
Selection Notes
Select this TCXO when application requirements specify a 10 MHz reference with 0.28 ppm stability. Ensure the system power rail supports the required 3.3 V input. Consider the clipped sine wave output format for interface compatibility with subsequent logic stages or amplifiers within the signal chain.
Part Context
This component belongs to the IQXT-220-1 series of oscillators manufactured by IQD Frequency Products. The series is designed to provide reliable frequency control solutions for various electronic applications. IQD is recognized for producing a wide range of frequency products including crystals and oscillators for industrial and commercial use.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official IQD Frequency Products resources for potential cross-reference options if this specific model is unavailable.
