Product Detailed Parameters
- Description：XTAL OSC VCTCXO 16.3840MHZ HCMOS
- Series：CFPT-125
- Mfr：IQD Frequency Products
- Package：Strip
- Base Resonator：Crystal
- Type：VCTCXO
- Frequency：16.384 MHz
- Function：-
- Output：HCMOS
- Voltage - Supply：3.3V
- Frequency Stability：±900ppb
- Absolute Pull Range (APR)：-
- Operating Temperature：-20°C ~ 70°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：3mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：8-SMD Module
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.079" (2.00mm)
Download product information
Overview

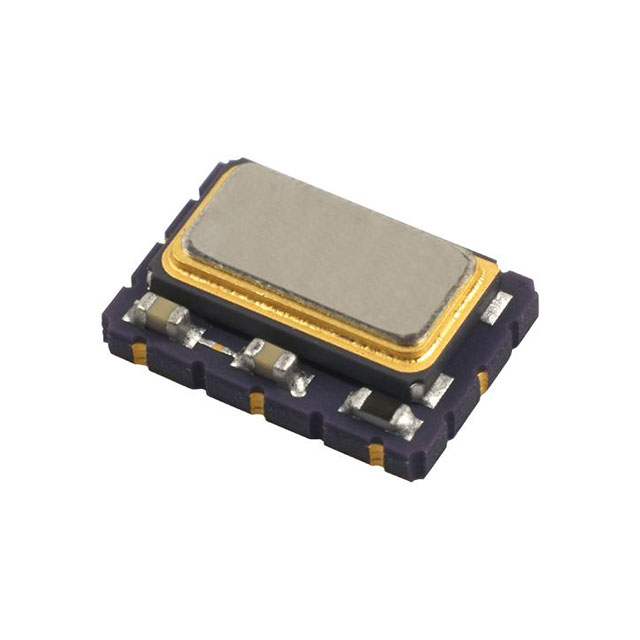

The LFTVXO009905BULK is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by IQD Frequency Products. It operates at a nominal frequency of 16.384 MHz with an HCMOS output format. The device requires a 3.3V supply voltage and utilizes an 8-SMD surface-mount package. It is designed for applications requiring precise frequency control within a specified operating temperature range.
Feature Summary
- Integrates voltage control and temperature compensation for enhanced frequency stability
- Provides digital HCMOS logic output signals
- Utilizes compact surface-mount packaging for automated assembly
Applications
- Precision timing circuits in communication systems
- Clock generation for embedded processors
- Test and measurement instrumentation
Procurement Notes
Verify the specific part number suffix against official IQD documentation to confirm the exact configuration, as bulk packaging designations may vary. Ensure that the required frequency tolerance and control voltage range align with system specifications before procurement. Cross-reference the datasheet for pinout compatibility and thermal requirements.
Selection Notes
Select this component when a stable 16.384 MHz clock source is required with integrated temperature compensation. Consider the 3.3V supply constraint and HCMOS output drive capability. Evaluate the 8-SMD footprint against available PCB space and ensure the operating temperature range meets environmental demands.
Part Context
This oscillator belongs to the VCTCXO category from IQD Frequency Products, which specializes in frequency control solutions. The series offers various frequencies and packages, catering to diverse industrial and commercial needs. IQD provides comprehensive support for these components through detailed technical documentation and global distribution networks.
FAQ
What is the output format of the LFTVXO009905BULK?
The output format is HCMOS.
What is the nominal operating frequency?
The nominal frequency is 16.384 MHz.
