LFTVXO009915BULK

Overview

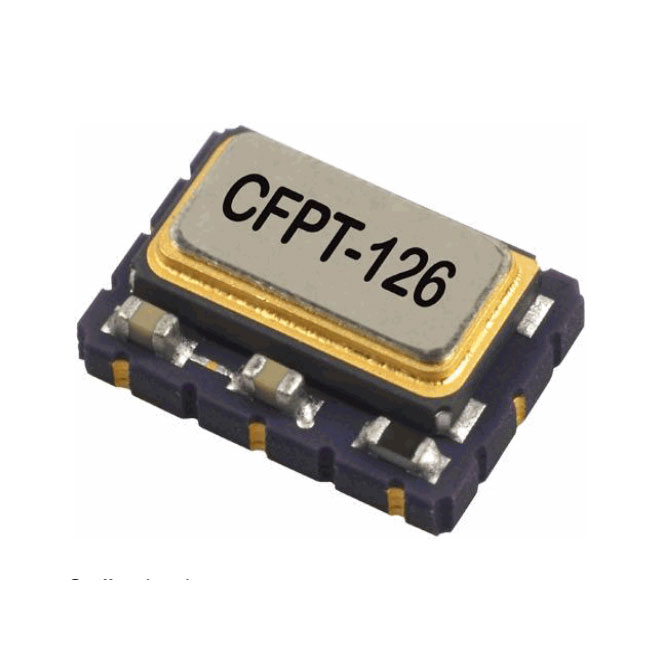

The LFTVXO009915BULK is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by IQD Frequency Products. It operates at a nominal frequency of 16.384 MHz with an output format of HCMOS. The device requires a supply voltage of 3.3 V and features a frequency stability of ±0.5 ppm. It is housed in a surface-mount 8-SMD module package with dimensions of 7.00 mm x 5.00 mm x 2.00 mm.

Feature Summary

• Integrated temperature compensation for high frequency stability
• Voltage-controlled operation for precise frequency tuning
• HCMOS digital output interface

Applications

• Precision timing systems requiring low phase noise
• Telecommunications equipment clock sources
• Industrial control systems with strict frequency tolerance needs

Procurement Notes

Verify the specific suffix and packaging configuration when ordering, as bulk tape options may differ from standard reel quantities. Confirm that the 3.3V supply requirement aligns with your system design before procurement. Ensure the ±0.5 ppm stability meets your application's jitter and drift specifications. Check for any lead-free or RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when a balance between size and high stability is required. The 7x5mm footprint suits space-constrained designs. Consider the HCMOS output compatibility with your logic levels. Evaluate the need for voltage control against fixed-frequency alternatives to optimize cost and complexity.

Part Context

This part belongs to the LFTVXO series of VCTCXOs from IQD Frequency Products. These oscillators are designed for applications demanding superior frequency accuracy over varying temperatures compared to standard TCXOs. The series typically offers various frequencies and packages to fit diverse electronic requirements.

Replacement Considerations

LFTVXO009918BULK: Similar VCTCXO but operates at 26 MHz with ±500ppb stability. LFTVXO076345: Operates at 30.72 MHz with ±250ppb stability. Verify frequency and pinout compatibility before substitution.
