LFXTAL023401

Overview

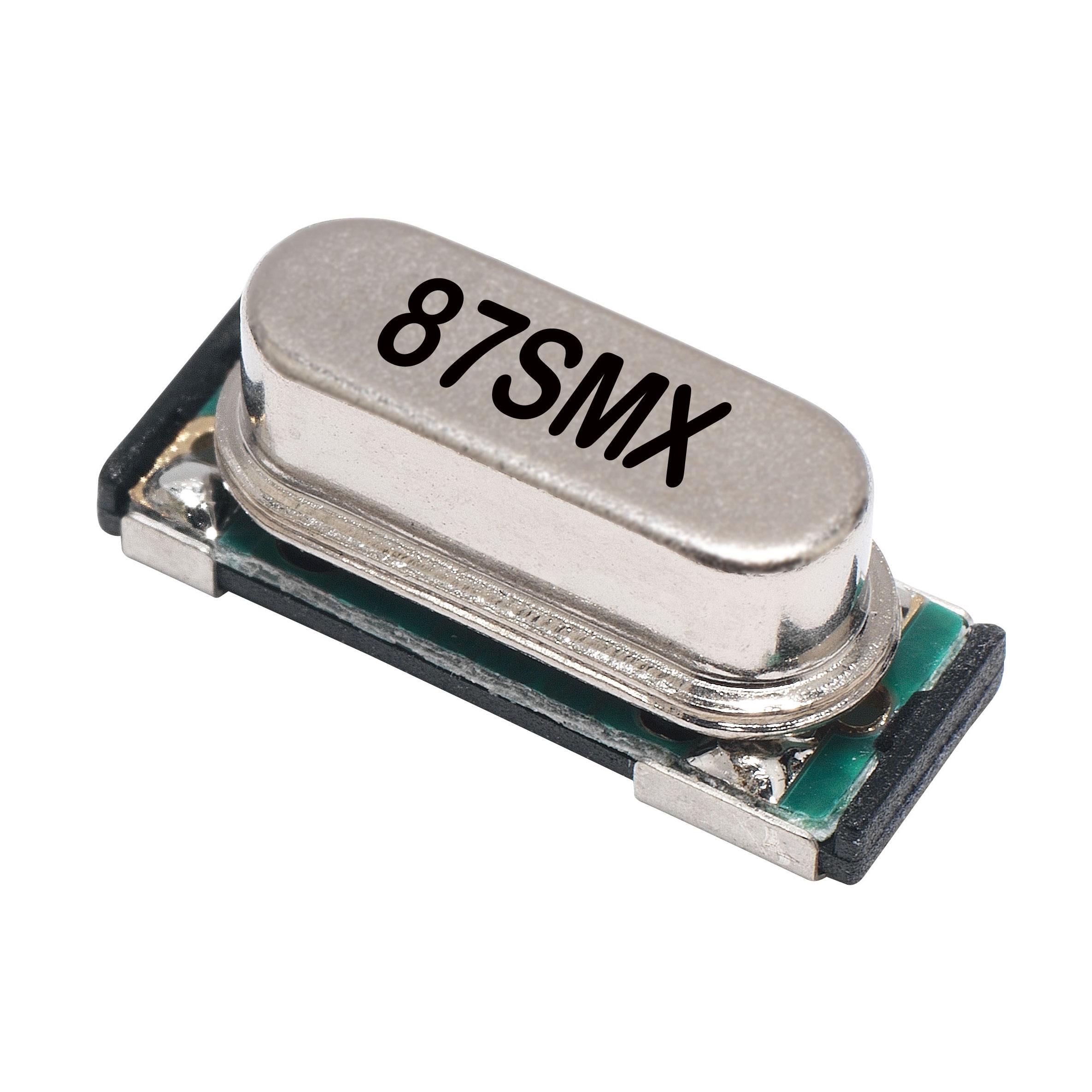

The LFXTAL023401 is a quartz crystal resonator manufactured by IQD Frequency Products. It operates at a fundamental frequency of 8 MHz with a load capacitance of 16 pF. The component features a tolerance and frequency stability of ±50 ppm. It utilizes a 4-SOJ package with a 9.00 mm pitch and has an equivalent series resistance (ESR) of 50 Ohms. The device supports a drive level of 1 mW and functions within a temperature range of -20°C to +70°C.

Feature Summary

• Provides precise 8 MHz timing reference for digital circuits
• Designed for surface mount integration via SOJ package
• Ensures stable oscillation with specified ESR characteristics

Applications

• Microcontroller clock generation
• Digital communication interface synchronization
• General-purpose timing circuits in industrial equipment

Procurement Notes

Verify the specific package variant and manufacturing date code against the official datasheet before procurement. Confirm that the 4-SOJ footprint matches the target PCB layout requirements. Ensure the operating temperature range aligns with the final application environment specifications.

Selection Notes

Select this component when a standard 8 MHz frequency is required for SMT assembly. Consider the 16 pF load capacitance compatibility with the oscillator circuit design. Evaluate the ±50 ppm stability requirement against system timing accuracy needs.

Part Context

This part belongs to the IQD Frequency Products quartz crystal lineup, which includes various fundamental and overtone modes. The LFXTAL series typically offers standard frequencies for general electronics applications. IQD provides these components for broad industrial and commercial use cases.

Replacement Considerations

Direct substitutes must match the 8 MHz frequency, 16 pF load capacitance, 4-SOJ package, and 50 Ohm ESR. Verify pin pitch and dimensional tolerances to ensure mechanical compatibility without redesigning the footprint.
