Product Detailed Parameters

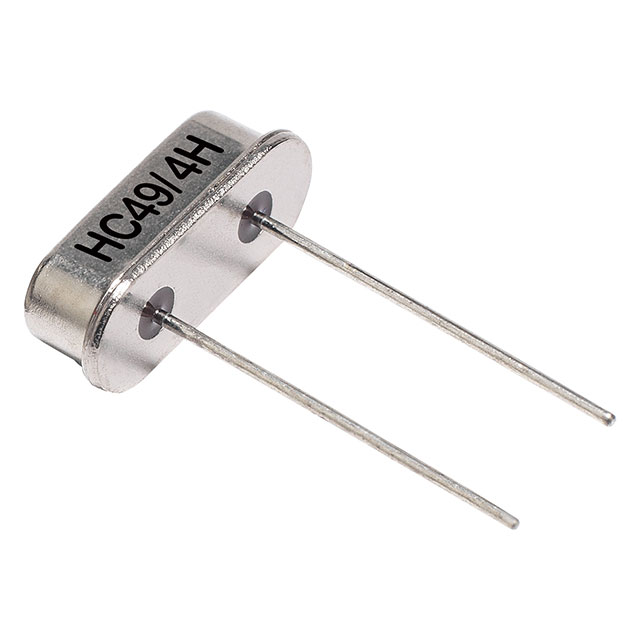

- Description：CRYSTAL 25.0000MHZ 22PF TH
- Series：HC49/4H
- Mfr：IQD Frequency Products
- Package：Bulk
- Type：MHz Crystal
- Frequency：25 MHz
- Frequency Stability：±50ppm
- Frequency Tolerance：±30ppm
- Load Capacitance：22pF
- ESR (Equivalent Series Resistance)：40 Ohms
- Operating Mode：Fundamental
- Operating Temperature：-10°C ~ 60°C
- Ratings：-
- Mounting Type：Through Hole
- Package / Case：HC-49/US
- Size / Dimension：0.435" L x 0.185" W (11.05mm x 4.70mm)
- Height - Seated (Max)：0.161" (4.10mm)
Download product information
Overview
The LFXTAL024901BULK is a quartz crystal resonator manufactured by IQD Frequency Products, designed for high-frequency applications. It operates within a frequency range of 1.84 MHz to 120.7 MHz and is housed in an industry-standard leaded package utilizing resistance welding technology. This component provides exceptional stability and reliability suitable for various electronic timing requirements.
Feature Summary
- Exceptional stability and reliability for high-frequency applications
- Industry standard leaded package construction
- Resistance welded manufacturing process
Applications
- High-frequency electronic circuits
- Timing and frequency control systems
Procurement Notes
Verify the specific operating frequency and load capacitance required for your circuit design against the official datasheet specifications. Confirm that the resistance-welded leaded package aligns with your PCB layout and assembly capabilities. Ensure the selected part meets all necessary environmental and performance standards for your intended application before finalizing procurement.
Selection Notes
Select this component when a wide frequency range from 1.84 MHz to 120.7 MHz is required in a standard leaded format. The resistance-welded construction offers robust mechanical integrity. Consider the industry-standard package dimensions for compatibility with existing through-hole mounting processes and automated assembly equipment.
Part Context
This part belongs to the IQD Frequency Products quartz crystal portfolio, which includes various SMD and THT options. IQD is a member of the Würth Elektronik eiSos group and supplies components globally for commercial, industrial, and automotive sectors. The LFXTAL series represents their standard crystal offerings.
Replacement Considerations
Consult official substitution lists or equivalent product catalogs from IQD Frequency Products for confirmed compatible alternatives. Verify that any substitute matches the electrical parameters and physical package dimensions.
